Diagnosed Navicular Syndrom

Discussion in 'Shoeing Horses with Lameness Issues' started by grimwood, Oct 17, 2013.

  1. Offline

    grimwood Member

    Likes Received:
    3
    Trophy Points:
    8
    I noticed a Grade 1 lameness when called out to trim this horse. The client did take my recommendation and take him to the vet for diagnosis. I could not be there but spoke with the vet afterwards. He diagnosed the gelding as Navicular Syndrom with a negative palmer angle. The horse has slightly contracted heels and atrophied frog on all four feet. I believe this was because his heels were stacked from neglect of hoof care prior to me seeing him. I thought it would be interesting to get everyones thoughts. p.s. I do not see a negative palmer angle. Looks acceptable to me.
  2. Offline

    ray steele Administrator

    Likes Received:
    159
    Trophy Points:
    63
    Grimwood,

    what was the suggested Rx.

    thanks

    ray
  3. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Couple of questions, What does the other foot look like, what sort of age is it and is it in work, out of work, retired from work never been in work?
  4. Offline

    grimwood Member

    Likes Received:
    3
    Trophy Points:
    8
    Trail horse about 10 years old. He recommended a rocker toe and wedge. He's in the pasture 24/7.


    Derek Grimwood
  5. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Derek is he unridden? and just out of interest are the front feet a pair?
  6. Offline

    Jack Evers Active Member

    Likes Received:
    45
    Trophy Points:
    28
    Syndrome is not a Dx. Some years ago I heard a British vet speak on navicular. She called it "the last refuge of the diagnostically deficient." I do consider that palmer angle as low ( needs to be addressed) but not negative.
  7. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    I to have heard that vet speak and have heard the same said about other conditions. Nether the less horses go lame and block to that area, personally I dont mind the term Navicular Syndrome but as you say Jack it isnt diagnosis . I expect the vet was looking at the ischemic holes and possible increase in density in the flexor surface of the Nav bone. Palmer angle looks ok to me id leave that as it is, but it looks broken back in pastern so maybe a wedge but not my favourite way of treating anything especially with a contracted paw like that has.
  8. Offline

    grimwood Member

    Likes Received:
    3
    Trophy Points:
    8
    Thanks for your opinions. I think everyone learns from having these discussions. Anyway, I put shoes on the gelding this evening and set him up in a 2 degree wedge and rocker toe. After the trim his angle was 55 degrees and his toe was 3 1/4 ". He trotted off sound and turned tight to the right without giving. However, when he was static he slightly pointed his right foot.

    Attached Files:

  9. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Whats a rockered toe?
  10. Offline

    Western Hill Forge Active Member

    Likes Received:
    126
    Trophy Points:
    43
    002.JPG 001.JPG

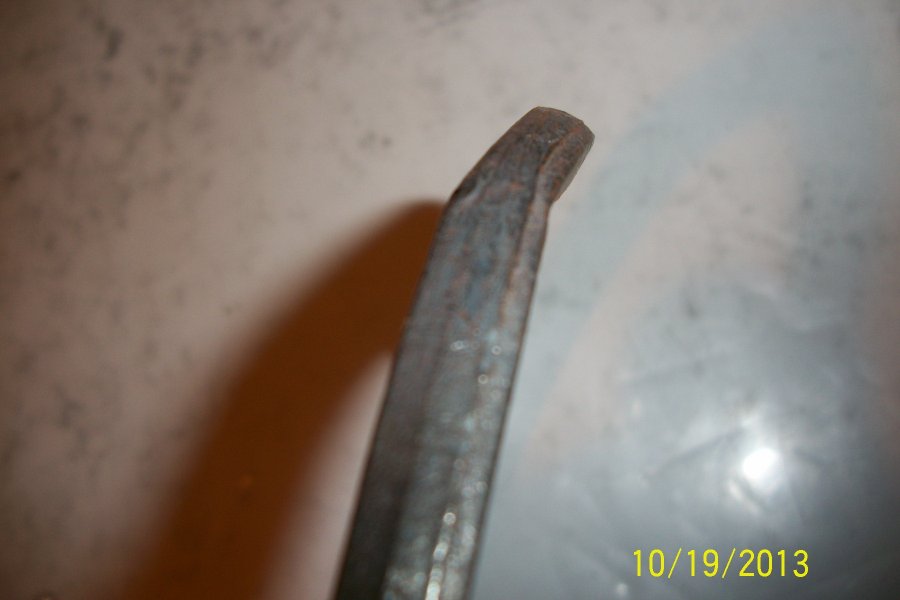

    "mild" rocker toe

    Regards
  11. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Thats what I thought Rick :D Thanks.
  12. Offline

    Jack Evers Active Member

    Likes Received:
    45
    Trophy Points:
    28


    Sounds like you gave him what he needed. Good job.

    Just a peeve of mine (and I seem to be pretty much alone in being bothered, but I like good descriptions), those are #2 wedges. Although almost everyone (including vets) uses the term 2 degree, they are closer to 4 or 5 degrees. There are a few pads that truly are sold in degrees, but most are not and in most cases, the degrees are two to three times the number. I've never gotten an answer as to why this is done. I just checked some Castle Plastic bar wedges and the #2 and #3 wedges have the same angle (almost 5 degrees). The #3 is just a bit longer and wider for a bigger foot.
  13. Offline

    Western Hill Forge Active Member

    Likes Received:
    126
    Trophy Points:
    43
    Do you call it something else across the pond?

    Regards
