Help with aluminium welding

Discussion in 'Horseshoeing Competitions and Handmade Horseshoes' started by Gabino, Jan 15, 2013.

Page 1 of 3
  1. Offline

    Gabino Active Member

    Likes Received:
    55
    Trophy Points:
    28
    I want to make an aluminium barshoe,but I never weld aluminium. I can't use my electric welder. Cause of,I want try welding with the forge,but I have some doubts. Can I use the borax? Densonfarrier has two videos in you tube,but I dont understand that he says. Besides,I can't intro in the other forum for search info..
    Any advices,please..
    Gabino, Jan 15, 2013
    #1
  2. Offline

    Justin Decker Active Member

    Likes Received:
    103
    Trophy Points:
    43
    You have to buy a special flux and wire, it's pretty expensive stuff.
    Justin Decker, Jan 15, 2013
    #2
  3. Offline

    Justin Decker Active Member

    Likes Received:
    103
    Trophy Points:
    43
    M
    Justin Decker, Jan 15, 2013
    #3
  4. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    david a hall, Jan 15, 2013
    #4
  5. Offline

    Dave Whitaker Active Member

    Likes Received:
    27
    Trophy Points:
    28
    I weld aluminum with my oxy/acetylene setup using fluxed alum rod... it's actually brazing, but you can jump a bar across the back of an alum shoe pretty handily with it.....

    Dave
    Dave Whitaker, Jan 15, 2013
    #5
  6. Offline

    Gabino Active Member

    Likes Received:
    55
    Trophy Points:
    28
    The flux for aluminium weld costs here at Spain about 50 euros.

    I saw these videos of Densonfarrier thousand times,but my ear can't understand his. He tell very strange for me. I understand better the wrote english language.
    I can see he puts a bit of aluminium wire??,but can't see if he puts flux. And he don't hit with the hammer,but he makes pressure with the hammer. Is it in this way?
    Gabino, Jan 15, 2013
    #6
  7. Offline

    Justin Decker Active Member

    Likes Received:
    103
    Trophy Points:
    43
    That's right Gabino some wire already has flux on it some have wire and flux separate.
    Justin Decker, Jan 15, 2013
    #7
  8. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Swan'swill post you the flux.
    david a hall, Jan 16, 2013
    #8
  9. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    Hobart Aluminum 4043 1/8 in. dia. Stick Electrode flux coated DC reverse arc. Works great with O/A, but it takes a little practice . . .
    Tom Bloomer, Jan 16, 2013
    #9
  10. Offline

    Gabino Active Member

    Likes Received:
    55
    Trophy Points:
    28
    Well..the borax don't work..
    The sole flux for aluminium available in Spain is named ALU Weld.It's expensive: 75g costs 50 euros. I will order the next week. I think it's my last opportunity.

    I have some good electrodes for aluminium.The problem is that my electric welder don't support these electrodes of 2,5 mm.
    Gabino, Jan 16, 2013
    #10
  11. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Gabino i think go with davids post
    smitty88, Jan 16, 2013
    #11
  12. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

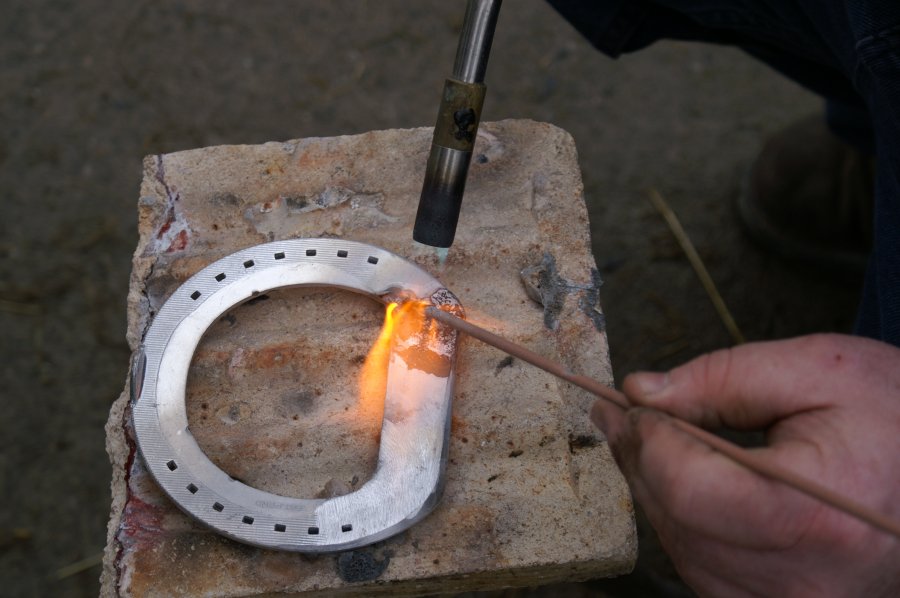

    welding aliminium 4.jpg

    GABINO YOU WILL NEVER BE STUCK ON THE ROAD
    smitty88, Jan 16, 2013
    #12
  13. Offline

    Gabino Active Member

    Likes Received:
    55
    Trophy Points:
    28
    Yes, I saw his web and they sent me to the spanish distributor..that it's my farrier supply. I believe that I will scratch my purse..

    Jonh..do you use this flux when you are welding aluminium?
    Gabino, Jan 16, 2013
    #13
  14. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    I have used both
    smitty88, Jan 16, 2013
    #14
  15. Offline

    Gabino Active Member

    Likes Received:
    55
    Trophy Points:
    28

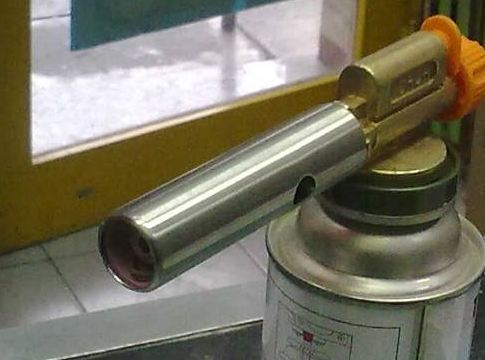

    View attachment 2731

    A man needs a master/friend like you to not stuck,John.

    A torch like this can weld the aluminium like in your pic? Or it need oxiacetylene torch?

    Gabino, Jan 16, 2013
    #15
  16. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Yes somthing like that one useing matt gas
    smitty88, Jan 16, 2013
    #16
  17. Offline

    AnthonyLawrence Active Member

    Likes Received:
    37
    Trophy Points:
    28
    What's Matt Gas John?

    Butane?
    AnthonyLawrence, Jan 16, 2013
    #17
  18. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

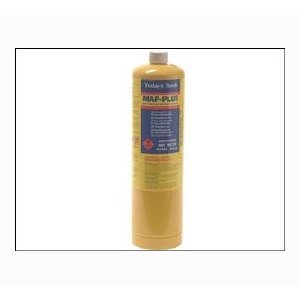

    Sorry Anthony i miss spelled it MAP 21XluDImCNL__SL500_AA300_.jpg
    smitty88, Jan 16, 2013
    #18
  19. Offline

    AnthonyLawrence Active Member

    Likes Received:
    37
    Trophy Points:
    28
    Ah, cheers.
    AnthonyLawrence, Jan 16, 2013
    #19
  20. Offline

    Gabino Active Member

    Likes Received:
    55
    Trophy Points:
    28
    Well..I found that rod..and I can say that very expensive too.

    John,can you forge the weld made with that rod?
    Gabino, Jan 16, 2013
    #20
