pritchels

Discussion in 'General Discussions' started by chris bunting, Mar 3, 2013.

  1. Offline

    chris bunting Well-Known Member

    Likes Received:
    115
    Trophy Points:
    63
    has anybody had any success making pritchels with stainless steel ?
  2. Offline

    brian robertson Active Member

    Likes Received:
    131
    Trophy Points:
    43
    Chris, I don't know of any stainless series that would be considered impact resistant but if molybdenum content was high enough it would be somewhat heat resistant. My experience has fabricating using mainly the 300 series. I know the 400 series stainless can be heat treated for hardening for knives but I'm not sure how well it would hold up to being repeatedly struck.

    You can always try; don't forget your safety glasses
  3. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    they say gardner pritchels are the best ,but im not so sure(n)
  4. Offline

    brian robertson Active Member

    Likes Received:
    131
    Trophy Points:
    43
    S7 will take the abuse;it's a specific impact resistant steel plus it's air hardening so 3/4" round is very simple to heat treat. H13 is a heat resistant steel, it will hold it's shape in the red range but it's also hard to forge with a hand hammer
  5. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    i think Brian the more you work a pritchel the tuffer it will become
  6. Offline

    brian robertson Active Member

    Likes Received:
    131
    Trophy Points:
    43
    with the use of a proper head stamp I suppose you could use nearly anything for a pritchel
  7. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    If you want good results they both need to be good IMG_8831.JPG
  8. Offline

    ray steele Administrator

    Likes Received:
    160
    Trophy Points:
    63
    It s interesting when folks talk about the best,

    Earl Wilhelm swears by pritchels made from rebar, probably not a cheaper steel anywhere, i ve made and used them as prichels and punches and I can t argue the point. His belief is that when you keep going to hot steel, temper,treatment and voodoo get burned in the process.

    Ray
  9. Offline

    chris bunting Well-Known Member

    Likes Received:
    115
    Trophy Points:
    63
    we have always used H13 (i think ) with no problems but i have just come across a good scource of 3/4 " round and was wondering what i could use it for
  10. Offline

    Justin Decker Active Member

    Likes Received:
    103
    Trophy Points:
    43
    Ray I have talked to a couple knife makers that use in there damascus, the green rebar used in structural building.
    They claim it holds an edge well and has a high tensile strength. I've got a piece but haven't made anything out of it yet.
  11. Offline

    joe bill There went my twenty!!!

    Likes Received:
    4
    Trophy Points:
    8
    H-13 is all I ever used. Colin had us make as many as we could stand to swing at when at OHS. I remember being so tired of swinging at that H-13 many times since then..... still have some of them left that are good as new. Never thought about using anything but H-13.....
  12. Offline

    Mikel Dawson Active Member

    Likes Received:
    115
    Trophy Points:
    43

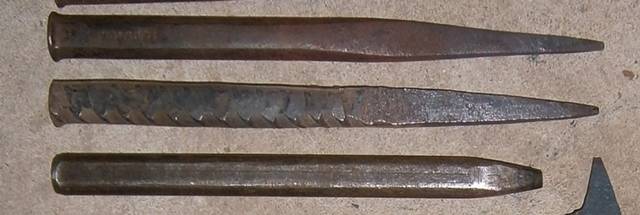

    That's the reason I built this guy. He takes all the work out of that tool steel!!

  13. Offline

    gary evans old and slow

    Likes Received:
    215
    Trophy Points:
    43
    Ha ha... I thought I was the only one who did that! :)

  14. Offline

    ray steele Administrator

    Likes Received:
    160
    Trophy Points:
    63



    I stand corrected, again, Earl Wilhelm , and Gary Evans, make pritchels and punches out of rebar,

    Gary, how do they hold up for you?

    Ray
  15. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    I'll take H13 over voodoo. The number nineteen (hexadecimal 13) has special powers.
  16. Offline

    joe bill There went my twenty!!!

    Likes Received:
    4
    Trophy Points:
    8
    I agree.....on the 13 for sure....I am sure rebar will last long enough.....but I know I have beat on my 13'$ since 89....still ticking.....used a few cans of beeswax up though .....just bought 13 stock from jack the other day for a forepunch and another pritchel....I have to try my new single burner out. .

    Sent from my SGH-T889 using Tapatalk 2
  17. Offline

    chris bunting Well-Known Member

    Likes Received:
    115
    Trophy Points:
    63
    what about K9 then ? im thinking of trying to make a few shoes
  18. Offline

    Rick Burten Professional farrier

    Likes Received:
    82
    Trophy Points:
    28
    You're going to heat and beat a dog? :eek::D;)
  19. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83


    What use would you be giving stamps and pritchels
    i was talking to some App the week-end
    and they make 40/45 pair a day
    how would your rebar hold up to 45 pair a day
  20. Offline

    ray steele Administrator

    Likes Received:
    160
    Trophy Points:
    63

    John,

    I couldn t tell you how well rebar stamps and pritchels would hold up to 40 /45 pair /day,

    Earl s belief as told to me is that the continued heat from nail hole to nail hole warms the steel enough that it make it malleable enough that the shape distorts no matter the steel. He keep 5 or 6 pritchels ready and only keeps it to the hot metal for a couple of hits, drops it back into a can of oil and uses another for the next couple of strikes, thereby not letting them get very warm, and always having a lubricated tip. I think he only touches them up once a day.

    He used to have the set up on his website in video s

    40 pair per day,that s 20 head of horses, I ve never done 20 head in handmades in a day,have you? If so,how d your pritchels hold up?

    Hope this helps,

    Ray
