SHOES FOR TOMORO

Discussion in 'Horseshoeing Competitions and Handmade Horseshoes' started by smitty88, Feb 26, 2013.

  1. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

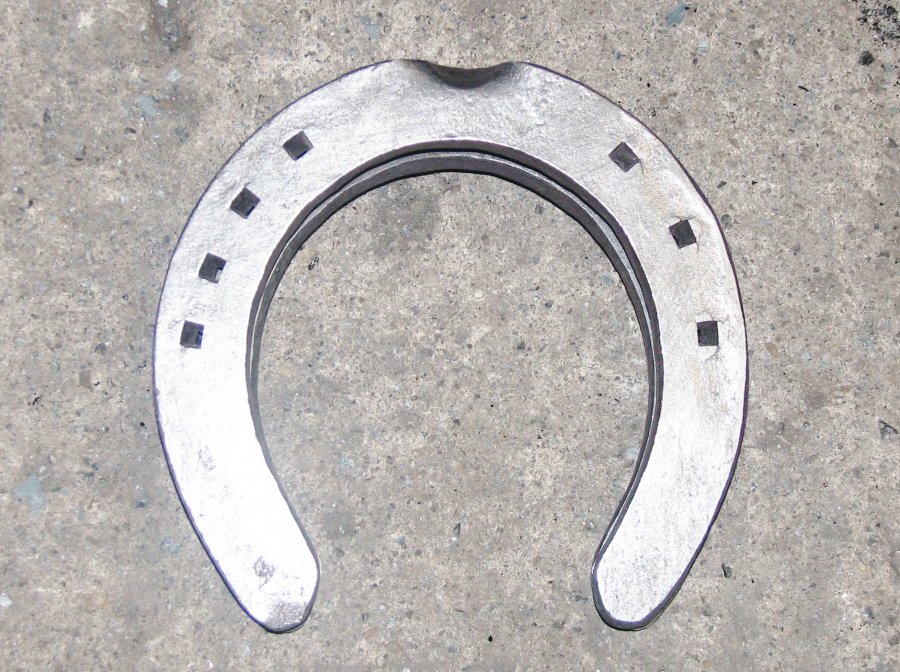

    Another new horse from today we hadent anything to fit the bugger so the boys made a pair from 1 1/4x 1/2 will do him tomoro IMG_0182.JPG
    smitty88, Feb 26, 2013
    #1
  2. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Made 4/5 pair of these size shoes today
    had front needed hinds to make sets
    11" of 3/4 x IMG_0230.JPG 5 /16
    smitty88, Mar 5, 2013
    #2
  3. Offline

    joe bill There went my twenty!!!

    Likes Received:
    4
    Trophy Points:
    8
    Better than anything I have seen!
    joe bill, Mar 11, 2013
    #3
  4. Offline

    Western Hill Forge Active Member

    Likes Received:
    125
    Trophy Points:
    43
    He's made better.

    Regards
    Western Hill Forge, Mar 11, 2013
    #4
  5. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Thank you Joe, pay no attention to Rick
    smitty88, Mar 11, 2013
    #5
  6. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

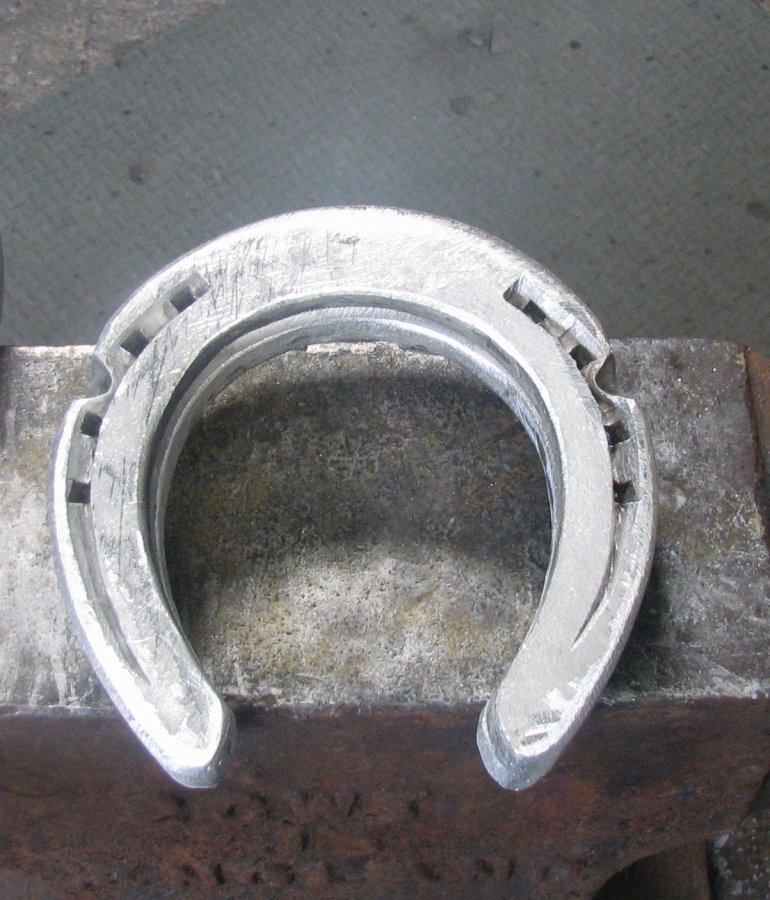

    These were made today from 3/4x3/4 square ALUMINIUM
    the horse measures 5 3/4" long and 6 " wide
    graduated heels put 1 1/2" into each heel
    what did i cut from the 3/4x3/4 square bar

    vet wanted these along with pads and silicon
    for a horse with coffin joint issues
    smitty88, May 22, 2013
    #6
  7. Offline

    Platerforge Guest

    Likes Received:
    0
    Trophy Points:
    0
    gorgeous as always.
    Q: why side clips....usually you use toe-clips?
    Platerforge, May 22, 2013
    #7
  8. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Vet wants these for a horse with coffin joint issues along with pads and silicon
    smitty88, May 22, 2013
    #8
    • Informative Informative x 1
    • List
  9. Offline

    gary evans old and slow

    Likes Received:
    215
    Trophy Points:
    43
    8" of square bar?
    gary evans, May 22, 2013
    #9
  10. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    12 1/4" Gary
    Hope to shoe the horse with the full package tomoro or the next day
    smitty88, May 22, 2013
    #10
  11. Offline

    gary evans old and slow

    Likes Received:
    215
    Trophy Points:
    43
    Wow, I was way out.
    What width were the finished shoes?
    I was working on 3/4
    gary evans, May 22, 2013
    #11
  12. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    they looked a strong 1 x 3/8
    smitty88, May 22, 2013
    #12
  13. Offline

    gary evans old and slow

    Likes Received:
    215
    Trophy Points:
    43
    Ah, that's where I lost the length.
    I was working on an inch of 3/4 x 3/4 hammering out to 2" of 3/4 x 3/8.
    gary evans, May 22, 2013
    #13
  14. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    we will see how the measurements ad up tomoro
    smitty88, May 22, 2013
    #14
  15. Offline

    gary evans old and slow

    Likes Received:
    215
    Trophy Points:
    43
    Interesting. Thanks.
    How do you work aluminium? Cold?
    gary evans, May 22, 2013
    #15
  16. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    No not cold, you have to play with a few to get the hang of it
    a few extra seconds could be the difference of your shoe in half
    smitty88, May 22, 2013
    #16
  17. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Super bit of hammer clipping John
    david a hall, May 22, 2013
    #17
  18. Offline

    gary evans old and slow

    Likes Received:
    215
    Trophy Points:
    43
    How did they go on?
    Did you get any pics?
    gary evans, May 23, 2013
    #18
  19. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    yes pics up on thread on the road shoeing
    smitty88, May 23, 2013
    #19
