Everyday Shoeing

Discussion in 'Everyday Horseshoeing' started by gary evans, Mar 8, 2012.

  1. Offline

    Kim Turner Master of my own domain

    Likes Received:
    70
    Trophy Points:
    48

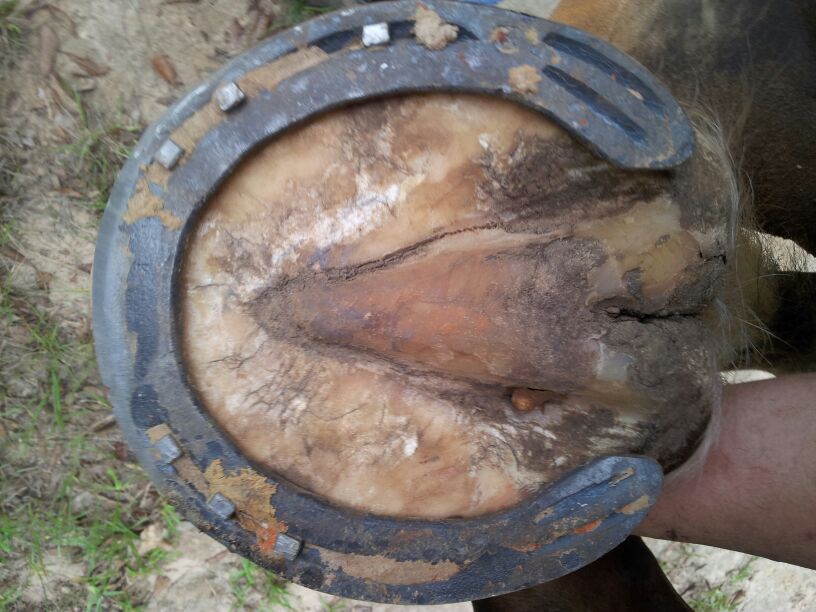

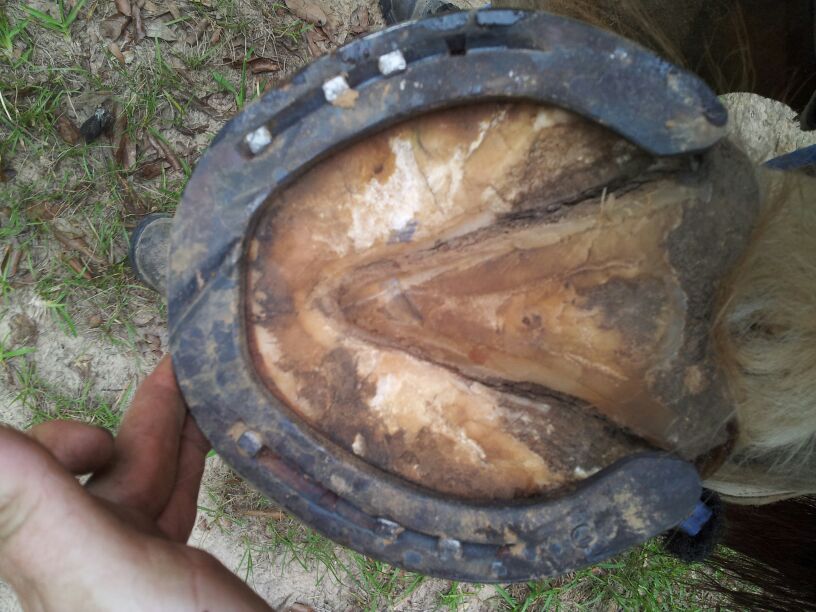

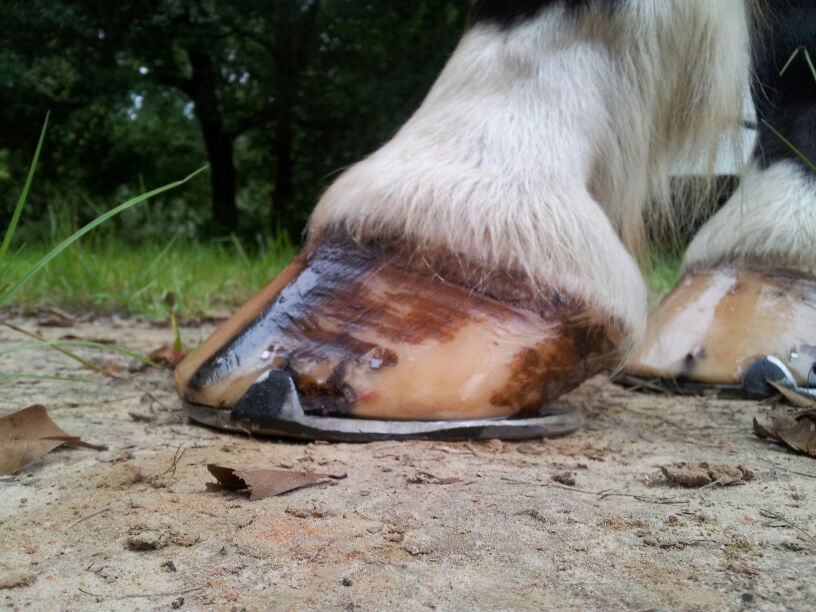

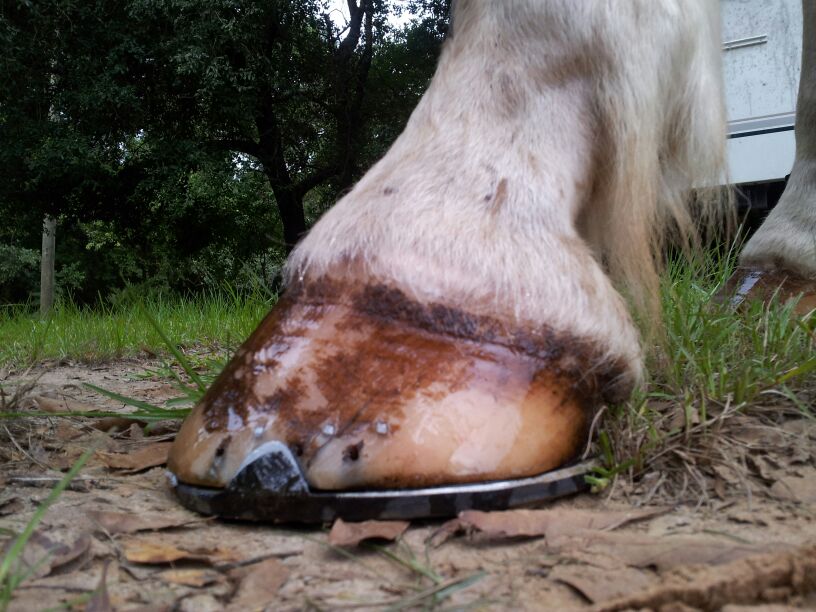

    Had to go back to my diamond clinchers. I haven't figured the GE's out yet. Doing a Tad better with the diamond.

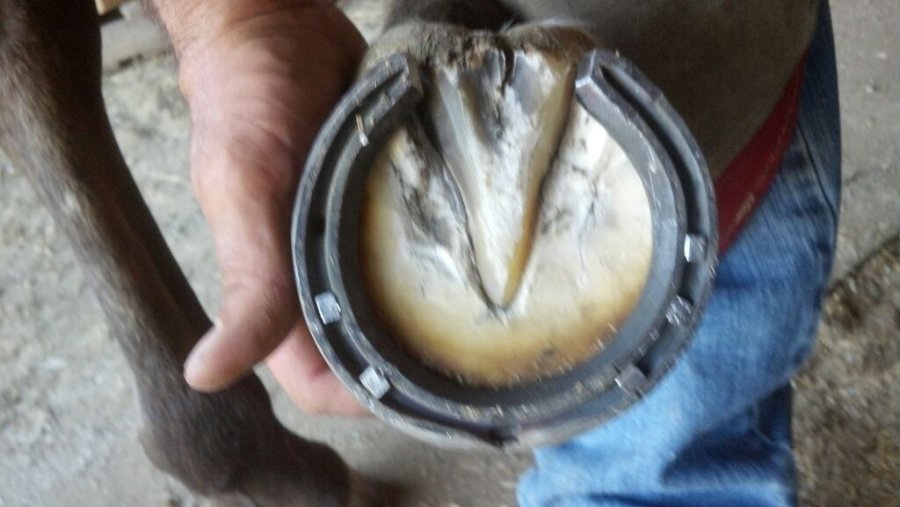

    uploadfromtaptalk1344544894324.jpg uploadfromtaptalk1344544912009.jpg uploadfromtaptalk1344544928920.jpg uploadfromtaptalk1344544942615.jpg
  2. Offline

    Gary Hill Active Member

    Likes Received:
    57
    Trophy Points:
    28
    Kim, they are tools made to do a job..let the tool do the work. I have had helpers that pushed and pulled and I just had to show them again and again to let the tool work. Bottom jaw under the nailhead and top jaw on clinch, just squeeze ? I know squeeze is going to come under fire but it is simply that when used properly..
  3. Offline

    Platerforge Guest

    Likes Received:
    0
    Trophy Points:
    0
    I might catch hell for saying this; But Kim that is your best so far. the first pic is the best. you are least getting there and learning better.
    this is to encourage you; no one else. keep trying
    • Like Like x 4
    • Agree Agree x 1
    • List
  4. Offline

    Marc Jerram FdSc AWCF www.thefarrier.co.uk

    Likes Received:
    31
    Trophy Points:
    28

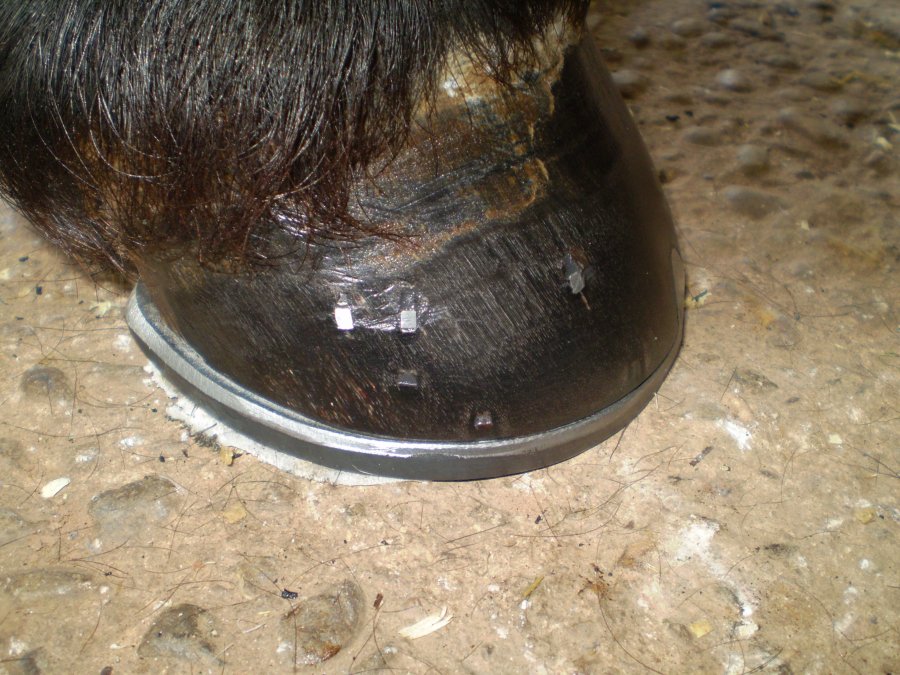

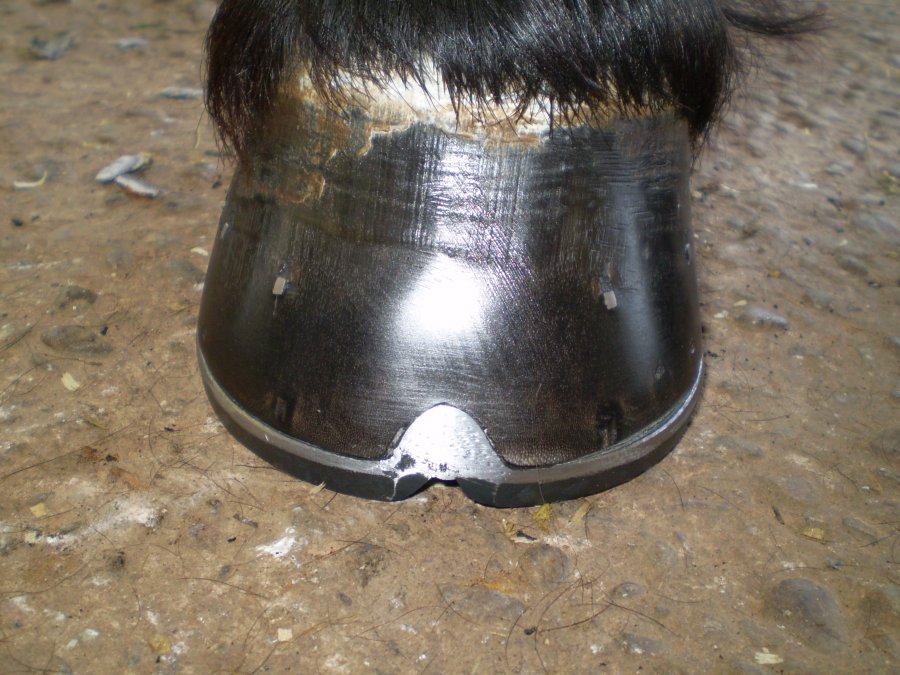

    Same foot as August contest with jizz on the feet...

    george 020.JPG

    george 021.JPG
  5. Offline

    Josh Ramsey Member

    Likes Received:
    19
    Trophy Points:
    18
    Wifes horse

    Sent from my DROID RAZR using Tapatalk 2

    Attached Files:

  6. Offline

    gary evans old and slow

    Likes Received:
    215
    Trophy Points:
    43
    Daughter's horse...
    11" of 5/8x3/8

  7. Offline

    Mr. Perry Active Member

    Likes Received:
    108
    Trophy Points:
    43
  8. Offline

    Mr. Perry Active Member

    Likes Received:
    108
    Trophy Points:
    43
  9. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Keep an i on your nail fit Kim
  10. Offline

    Kim Turner Master of my own domain

    Likes Received:
    70
    Trophy Points:
    48

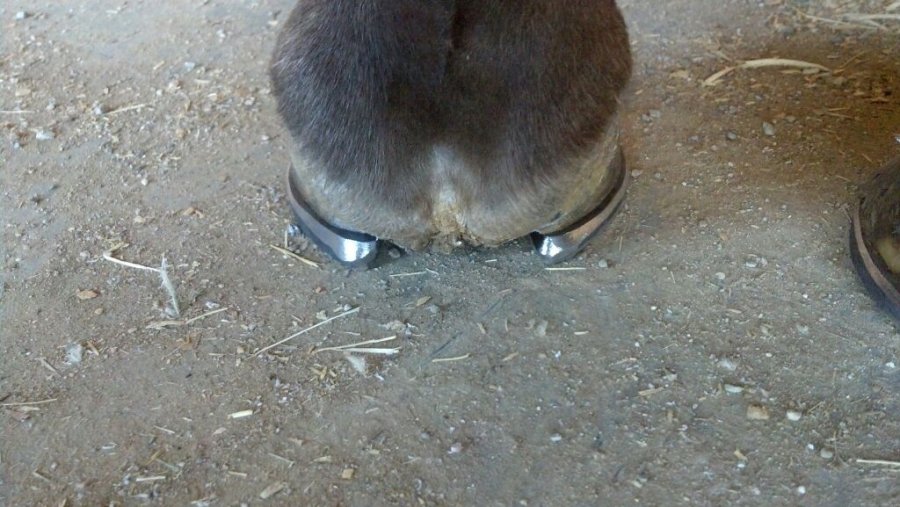

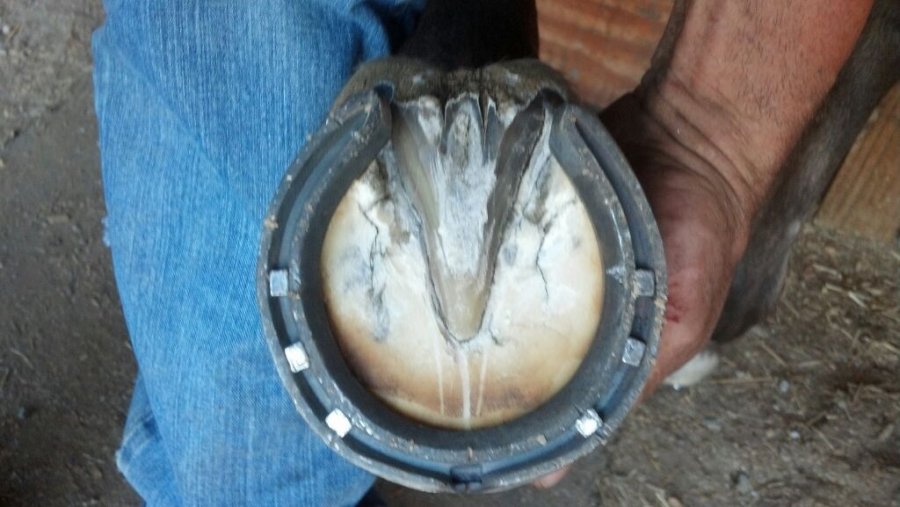

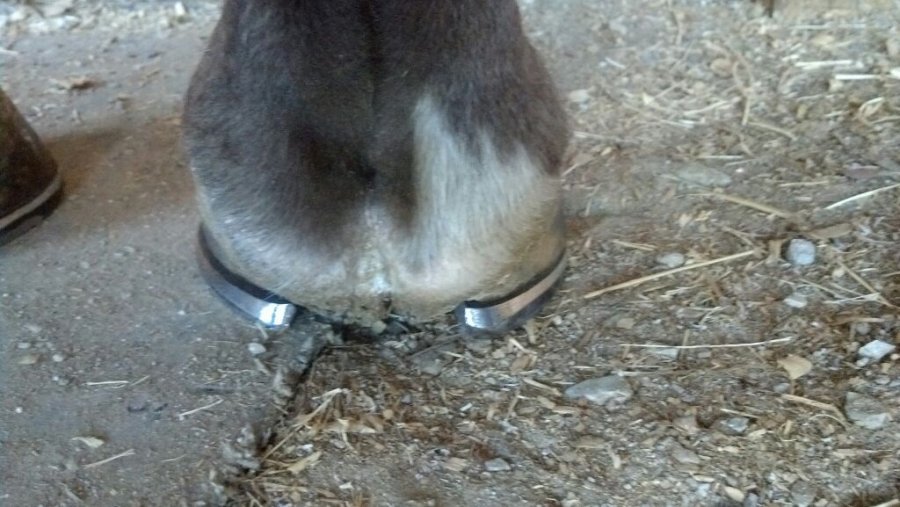

    Trying a different way to widen the heels.
  11. Offline

    Kim Turner Master of my own domain

    Likes Received:
    70
    Trophy Points:
    48
    On the Draft Jaye referenced? or the one in the August contest?
  12. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    I think post 668
  13. Offline

    Kim Turner Master of my own domain

    Likes Received:
    70
    Trophy Points:
    48
    That's an E5 nail...... Was previously using CH6 on him. I thought the Keark's were punched for the E heads, so that's why I switched.

    Or are you referencing the one in the middle that I probably pinched a little.
  14. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    you cant have some fitting and one sticking out like a sore thumb
  15. Offline

    Kim Turner Master of my own domain

    Likes Received:
    70
    Trophy Points:
    48
    yeah, I probably pinched the nail hole. Trying to work on not doing that.
  16. Offline

    Western Hill Forge Active Member

    Likes Received:
    125
    Trophy Points:
    43
    Kim,
    a little habit I've tried to form is after I site my show for level, usually the last step before going to the horse, is to hold my shoe up to the light and look at the nail holes. I can usually see any pinched ones and it takes no time at all.

    Believe it or not, I actually distort one on occasion, but I wouldn't admit it publicly. It never ceases to amaze me at how many new ways I can find to screw things up. If I worked for Smitty for a month I'd make him crazy. :LOL:

    Regards
  17. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Kim its called having a system
    when working under the horse

    and when working on the anvil
    stand back and take a look at your system
  18. Offline

    Steve Marshall Member

    Likes Received:
    13
    Trophy Points:
    18
    I had a bunch of shoes in a box of Kerk SX7 000 that were not even punched all the way through at the toe recently. Got very angry with myself when I manged to nail up the second shoe without checking the nail holes or lack of first. Made me change my system.
  19. Offline

    Mr. Perry Active Member

    Likes Received:
    108
    Trophy Points:
    43

    it is called, "redundancy". Check work, check work and check work.

    I don't nail up until three checks are made to the foot and the shoe. My shop is a pain John....
  20. Offline

    Platerforge Guest

    Likes Received:
    0
    Trophy Points:
    0
    you should only be using an SB5 Capewell; or any other nail name brand that size.......CH5XL should be the largest nail to use on most horses; unless you are going to a size 4 and up shoe. SB6 Capewell is then what I use. you need to keep it to a E3 or E4 and slims are better. That's why you are pinching the horse; you are using to large of a nail; on the horse and on the shoe. your nails heads will be to big on the shoe and your clinches will start to pop up after a while. you will tear the walls apart with to big of nail. there is only 1/32 of an inch on both sides of the white line to drive a nail into.
