Grant Building A Shoe.

Discussion in 'Horseshoeing Competitions and Handmade Horseshoes' started by david a hall, Nov 25, 2012.

Page 1 of 3
  1. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83

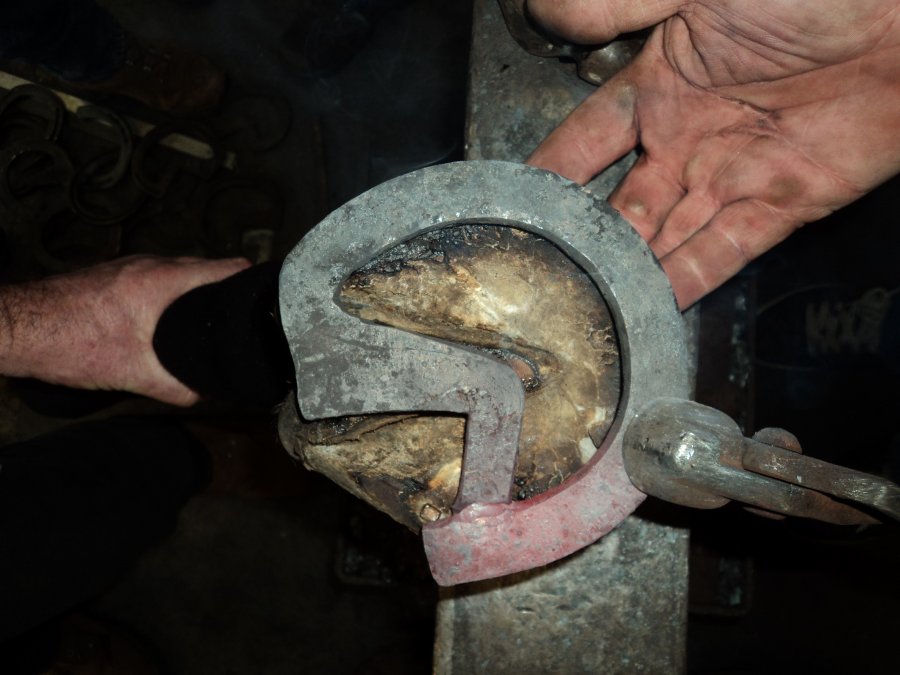

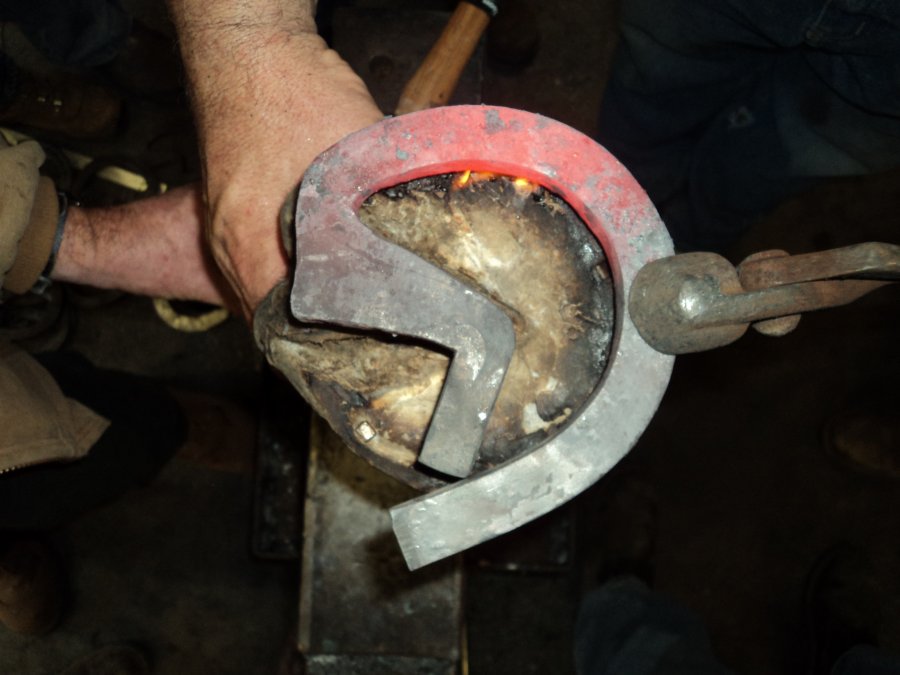

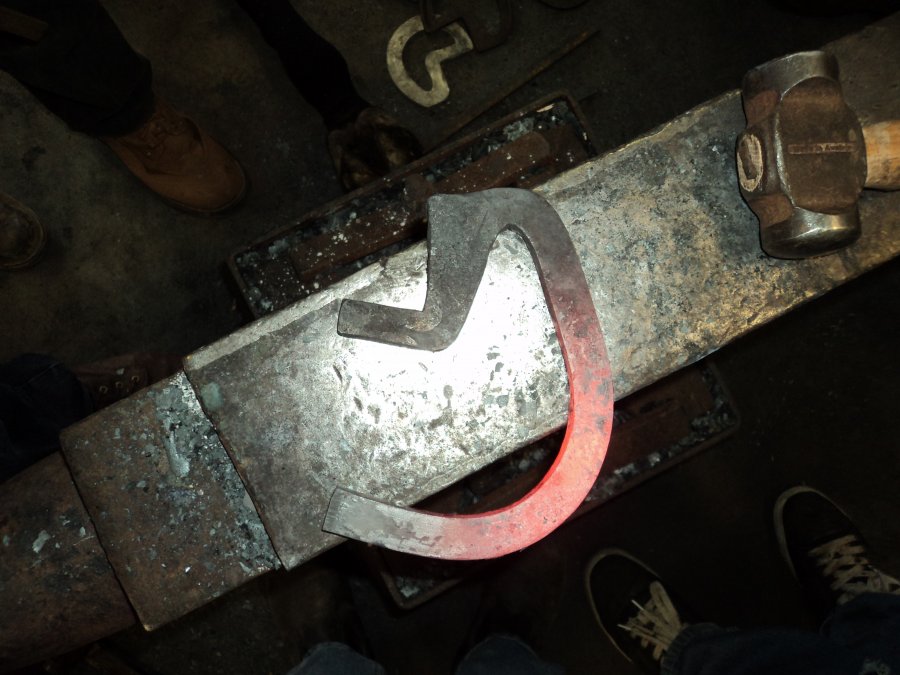

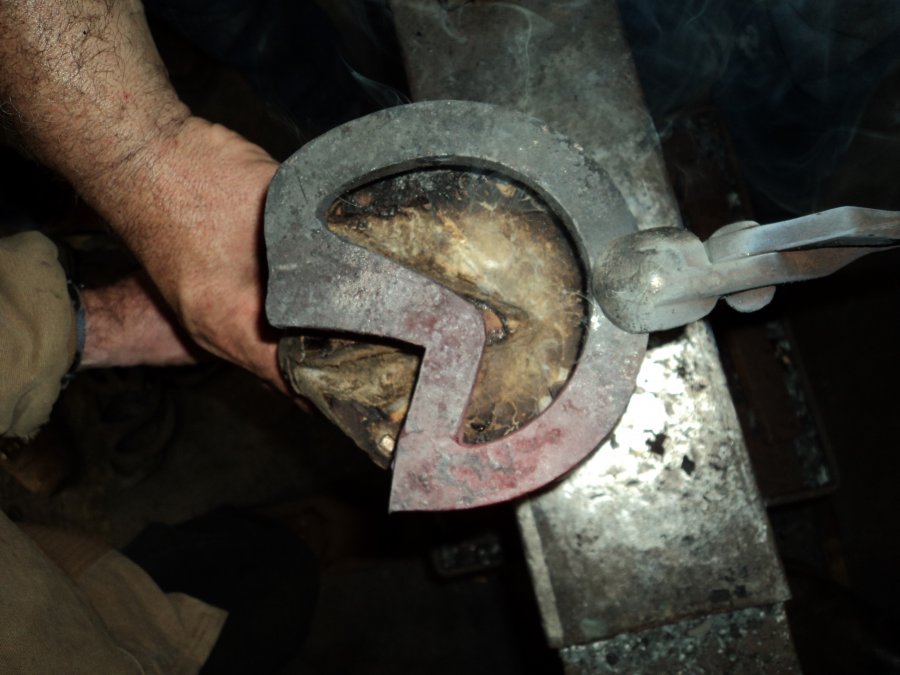

    Grant gave us a bit of his time earlier this year. I just found a series of photos I took at the time. I hope they are interesting. DSC00300.JPG DSC00301.JPG DSC00302.JPG DSC00304.JPG DSC00306.JPG DSC00307.JPG DSC00308.JPG
    david a hall, Nov 25, 2012
    #1
  2. Offline

    Marc Jerram FdSc AWCF www.thefarrier.co.uk

    Likes Received:
    31
    Trophy Points:
    28
    Thats really interesting. So he turned the section back on itself for the frog plate, then turned at 90 degrees to marry up with the medial branch. How did he mark the amount to turn for the frog plate and cut across in the straight? Did he have a method for calculating the amount of steel required when measuring a hoof?

    Thanks
    Marc Jerram FdSc AWCF, Nov 25, 2012
    #2
  3. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Is that 2 pieces David welded?
    smitty88, Nov 25, 2012
    #3
  4. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    He did yep but I cant exactly remember it.

    John it is one piece.
    david a hall, Nov 25, 2012
    #4
  5. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    On pic 1 it looks like its welded

    maybe its the pic or my bad eye sight
    smitty88, Nov 25, 2012
    #5
  6. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    It is, doubled over and welded back on itself.
    david a hall, Nov 25, 2012
    #6
  7. Offline

    Platerforge Guest

    Likes Received:
    0
    Trophy Points:
    0
    what was wrong with the horse? just asking
    Platerforge, Nov 28, 2012
    #7
  8. Offline

    Marc Jerram FdSc AWCF www.thefarrier.co.uk

    Likes Received:
    31
    Trophy Points:
    28
    Sadly the horse was dead :( this was a forging exercise
    Marc Jerram FdSc AWCF, Nov 29, 2012
    #8
  9. Offline

    Platerforge Guest

    Likes Received:
    0
    Trophy Points:
    0
    ok
    Platerforge, Nov 29, 2012
    #9
  10. Offline

    Marc Jerram FdSc AWCF www.thefarrier.co.uk

    Likes Received:
    31
    Trophy Points:
    28
    The shoe is useful for horses that slice a heel bulb off as it floats the affected area
    Marc Jerram FdSc AWCF, Nov 29, 2012
    #10
    • Informative Informative x 1
    • List
  11. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    How does one float something that's sliced off? :barefoot:
    Tom Bloomer, Nov 29, 2012
    #11
  12. Offline

    Marc Jerram FdSc AWCF www.thefarrier.co.uk

    Likes Received:
    31
    Trophy Points:
    28
    Maybe float isn't the correct description but I'm very tired and struggling for correct terminology! At least I'm honest.
    Marc Jerram FdSc AWCF, Nov 29, 2012
    #12
  13. Offline

    Rick Burten Professional farrier

    Likes Received:
    82
    Trophy Points:
    28
    With imagination, of course. ;)
    Rick Burten, Nov 29, 2012
    #13
  14. Offline

    Rick Burten Professional farrier

    Likes Received:
    82
    Trophy Points:
    28
    Impossible! You are a farrier afterall.....;) :)
    Rick Burten, Nov 29, 2012
    #14
  15. Offline

    Gary Hill Active Member

    Likes Received:
    57
    Trophy Points:
    28
    I have never been able to understand why one would take away the protection from ground forces like that? As long as the insulted area isnt making contact with the shoe, I would think the shoe then would be protecting the area? Unlevel surfaces or rocks and such would be able to make contact with the damaged area..but ya did say it was an exercise...:)
    Gary Hill, Nov 29, 2012
    #15
  16. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    That's ok. I'm sure the guy building the shoe can't explaint it either.
    Tom Bloomer, Nov 30, 2012
    #16
  17. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    Well as long as the horse walked of better than it walked up . . . :cool:
    Tom Bloomer, Nov 30, 2012
    #17
  18. Offline

    Western Hill Forge Active Member

    Likes Received:
    125
    Trophy Points:
    43
    I have made G bars before, just for an exercise. I have never applied one, butI would not consider this shoe for a horse that was going to be turned out.

    Regards
    Western Hill Forge, Nov 30, 2012
    #18
  19. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    How do you make that out Tom?
    smitty88, Nov 30, 2012
    #19
  20. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Its a black smithing excersise. Iritating to have to make something that has no reel use but that is the hoop to jump through.
    david a hall, Nov 30, 2012
    #20
