October 2013 Contest

Discussion in 'Farrier Photo Contests' started by ray steele, Sep 30, 2013.

  1. Offline

    Michael Allen Champion spokesman for UK toolmaker!

    Likes Received:
    147
    Trophy Points:
    43
    Unfortunately no. I am on my way out of town for the week. All good but the extended heels. Hopefully someone could post an example before I get back. I will be back by the 18th.
  2. Offline

    Rick Burten Professional farrier

    Likes Received:
    82
    Trophy Points:
    28
    David, It won't pass because all the front modifications are supposed to be on the other side of that shoe..........
  3. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Is it upside down or back to front? Will I ever be good enough?
  4. Offline

    Rick Burten Professional farrier

    Likes Received:
    82
    Trophy Points:
    28
    You already are......
  5. Offline

    chris bunting Well-Known Member

    Likes Received:
    115
    Trophy Points:
    63
    30 yrs shoeing you are obviously daft enough LOL
  6. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    My sympathies, David. Being overqualified is a bitch. :cry:
  7. Offline

    travis dupree reed Active Member

    Likes Received:
    95
    Trophy Points:
    28
    Thats sad and true..
  8. Offline

    Western Hill Forge Active Member

    Likes Received:
    126
    Trophy Points:
    43

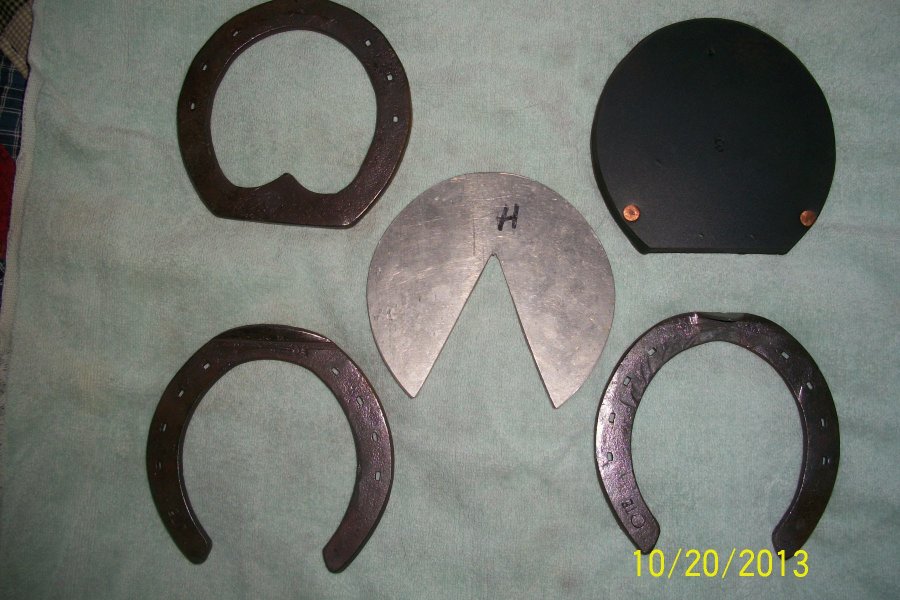

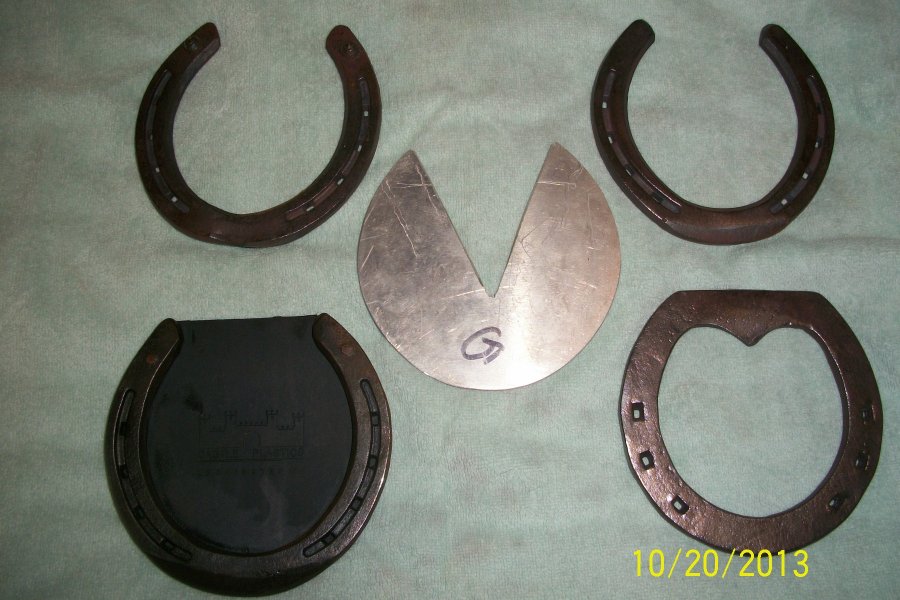

    I thought my shoes were bad, but my photography really sucks. Here they are anyway. Toe clip w/ studs, Rockered toe, rolled toe w/ wedge pad, bar shoe. ground surface - fronts.JPG Hoof surface - fronts.JPG
    • Like Like x 1
    • Winner Winner x 1
    • List
  9. Offline

    Western Hill Forge Active Member

    Likes Received:
    126
    Trophy Points:
    43

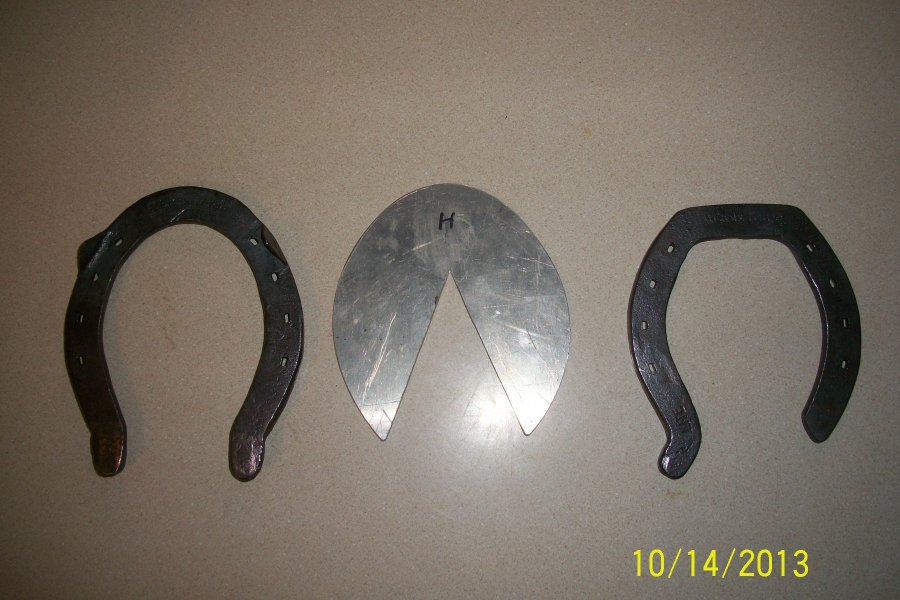

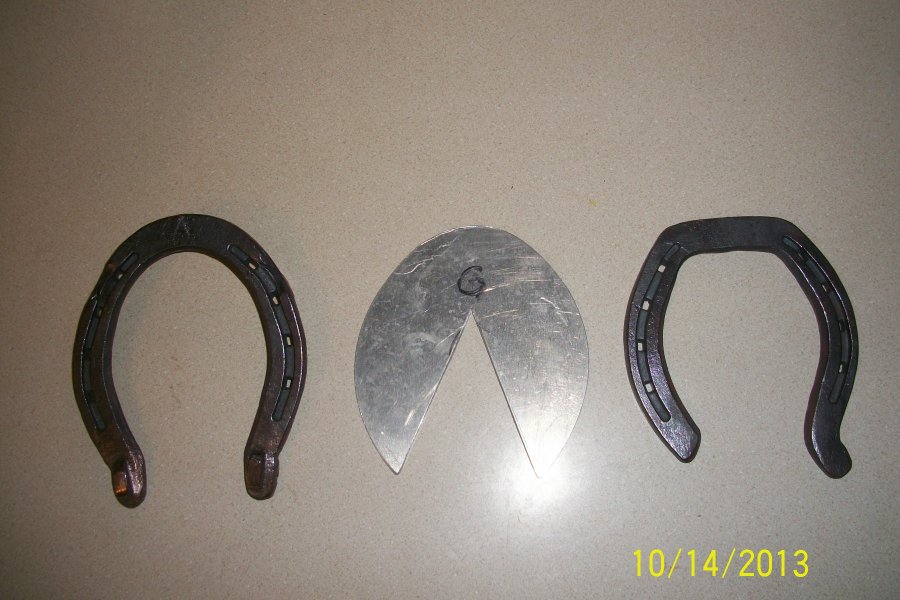

    And the hinds: Square toe w/ trailer, quarter clips w/ extended heels and jar caulks.

    Ground surface - hinds.JPG Hoof surface - hinds.JPG
    • Like Like x 1
    • Winner Winner x 1
    • List
  10. Offline

    Michael Allen Champion spokesman for UK toolmaker!

    Likes Received:
    147
    Trophy Points:
    43
    Rick, this appears to be a passing shoe board. I am assuming they all fit. ( looks to me like they do) and level.
    Before i would judge your shoe I would ask you to notch your patterns for a clip and draw a white line on them.

    You are also missing the boxing on your extended heels and trailer. So I would ask you to remake your shoe with extended heels. For question and answer I would want you to explain your extended heel shoe and why you added traction to that shoe.

    overall well done and thought out. Much better prepaired then many guys that show up at a certification in my area.
    Your bar shoe is by far your nicest shoe. Forging on a lite shoe is a pain and it shows in hammer marks/ pinched sections.
  11. Offline

    Western Hill Forge Active Member

    Likes Received:
    126
    Trophy Points:
    43
    Michael, thanks for the input. Pretty easy stuff to fix. Did you want me to make the changes and re-submit the pics, or just letting me know.

    I used the St Croix lites because I have some sitting around that I am unlikely to use very often.

    I chose the caulks on the extended heels because I have a few on the books that forge, and I use heeled shoes, and/or with extended heels. The jar caulks were just to satisfy the requirements and for fun. I find the square toe, trailer, and extended heels to be the most difficult aspects to get right
    The bar shoes I'm fairly confident with, cause I do them a lot.

    Again, thanks for the input.

    Regards
  12. Offline

    Michael Allen Champion spokesman for UK toolmaker!

    Likes Received:
    147
    Trophy Points:
    43
    No need to resubmit. This is all for fun. I was just letting you know what I would do at a test sight. With regards to patterns.

    I agree on the hind shoe modifications. They are the toughest. I also was guessing that you were using your surplus shoes that have been laying around for a bit. I have never been a hugh fan of light shoes for the simple fact they hardly ever reset.

    Good response for your extended heel. I might need to reread the book. I know there used to be a question answer portion, but not sure if there still is.

    Well done!
  13. Offline

    Western Hill Forge Active Member

    Likes Received:
    126
    Trophy Points:
    43
    Michael, this was a great exercise. I hope some other guys are working on it. Very fun and time well spent.

    Regards
  14. Offline

    Michael Allen Champion spokesman for UK toolmaker!

    Likes Received:
    147
    Trophy Points:
    43
    One day left! Rick is in the lead. Any more takers?
  15. Offline

    Western Hill Forge Active Member

    Likes Received:
    126
    Trophy Points:
    43
    LOL, Rick's also in last place, depending on how you want to look at it. Hoping for some last minute entries.

    Regards
  16. Offline

    Michael Allen Champion spokesman for UK toolmaker!

    Likes Received:
    147
    Trophy Points:
    43
    Rick Shepherd wins hands down. With a passing shoe board!
  17. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    Nice job Rick. I assume Ray is going to mail you the standard paper bag certification. :)
  18. Offline

    Western Hill Forge Active Member

    Likes Received:
    126
    Trophy Points:
    43
    Well, I would certainly hope so!

    Regards
  19. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Is there nothing happening regarding a bit of forging for the new year?
    (competition)
  20. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Used to be fun didn't it, il have a think over Christmas.
