Show us your handmades

Discussion in 'Horseshoeing Competitions and Handmade Horseshoes' started by david a hall, Oct 31, 2012.

  1. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

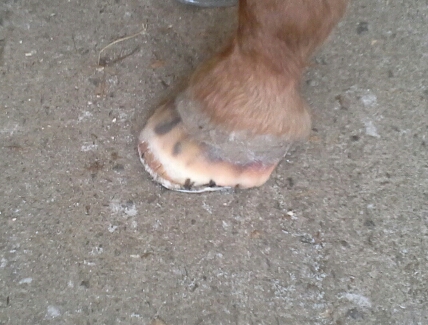

    Got to glue on them ali bar shoes today 20150408_151119(1).jpg
  2. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
  3. Offline

    Alex Hall Active Member

    Likes Received:
    62
    Trophy Points:
    28

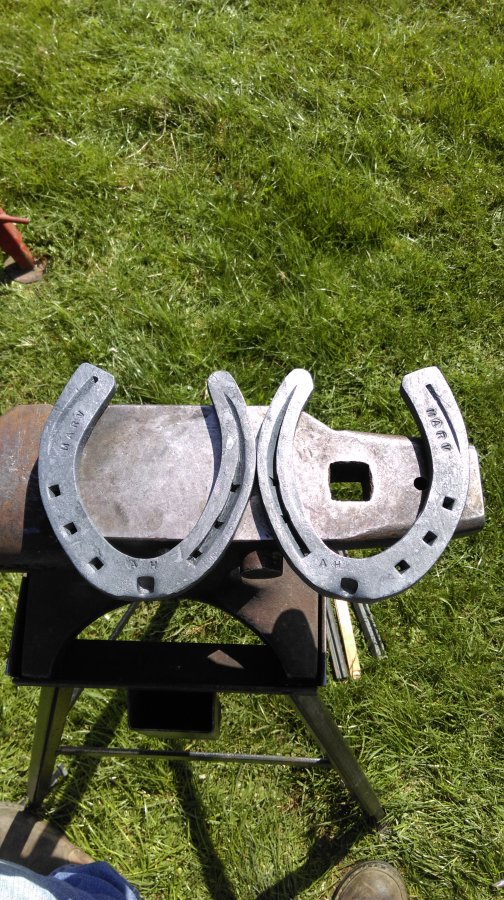

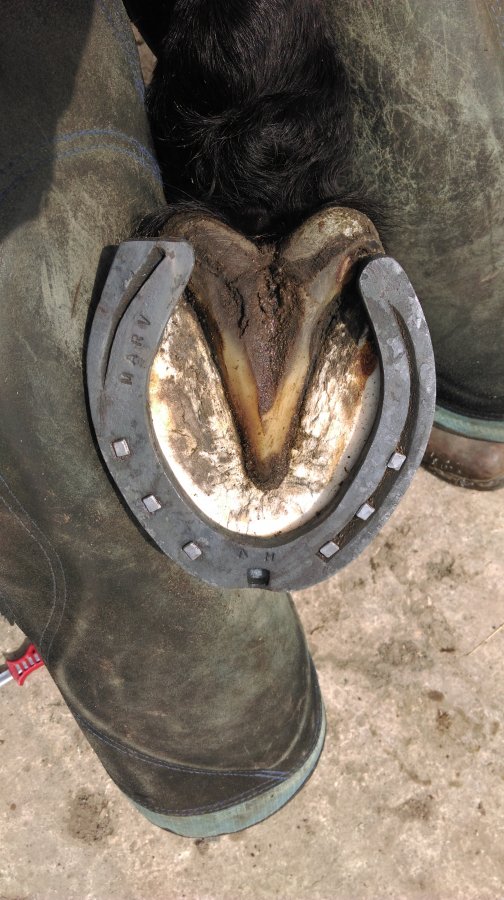

    Made these for a horse today that I have booked in for this week. Made out of the back of the van, lateral extensions for a horse with bone spavin in both hocks
  4. Offline

    Alex Hall Active Member

    Likes Received:
    62
    Trophy Points:
    28

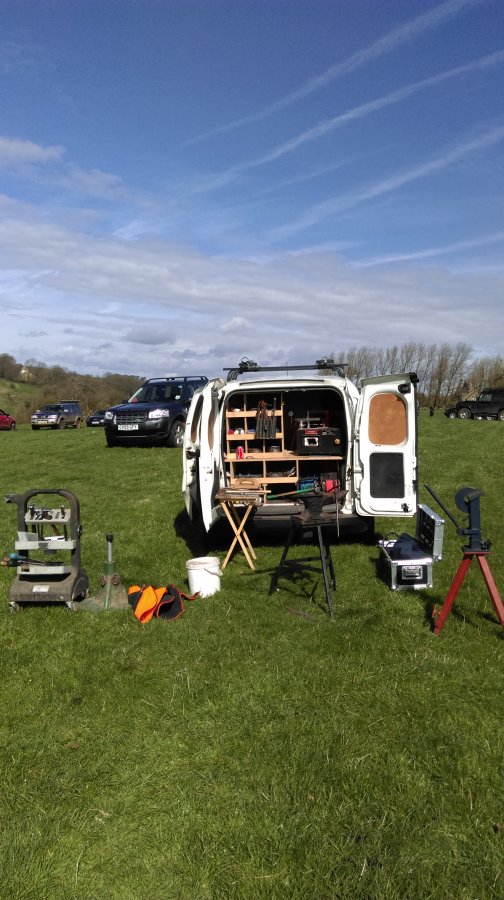

    View of the back of the van
  5. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    What section and size did you end up with?
  6. Offline

    Alex Hall Active Member

    Likes Received:
    62
    Trophy Points:
    28
    Used inch by half and got 14 inches
  7. Offline

    Alex Hall Active Member

    Likes Received:
    62
    Trophy Points:
    28
  8. Offline

    brian robertson Active Member

    Likes Received:
    132
    Trophy Points:
    43
    Alex, what does that horse do for a living?
  9. Offline

    Alex Hall Active Member

    Likes Received:
    62
    Trophy Points:
    28
    Was an eventer and also did some hunting. Only 5 years old. I took him on as other farriers couldn't keep him sound and I managed to keep him sound (even with bone spavin) he managed a great season but his hocks have progressively got worse, especially the right hock. Now he's doing some school work and some hacking and owner has said he's moving well and happy with his progress
  10. Offline

    brian robertson Active Member

    Likes Received:
    132
    Trophy Points:
    43
    maybe he'll feel better after the lower joints fuse in a year or two.

    I am puzzled by no crease on the lateral side?
  11. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Any rotation of the limb and the do rotate... Is taken up between the interface of the ground and shoe. If you restrict this the torsion occurs in the hock
  12. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    That's a good job Alex
  13. Offline

    brian robertson Active Member

    Likes Received:
    132
    Trophy Points:
    43
    doesn't the medial crease effect it?
  14. Offline

    Alex Hall Active Member

    Likes Received:
    62
    Trophy Points:
    28

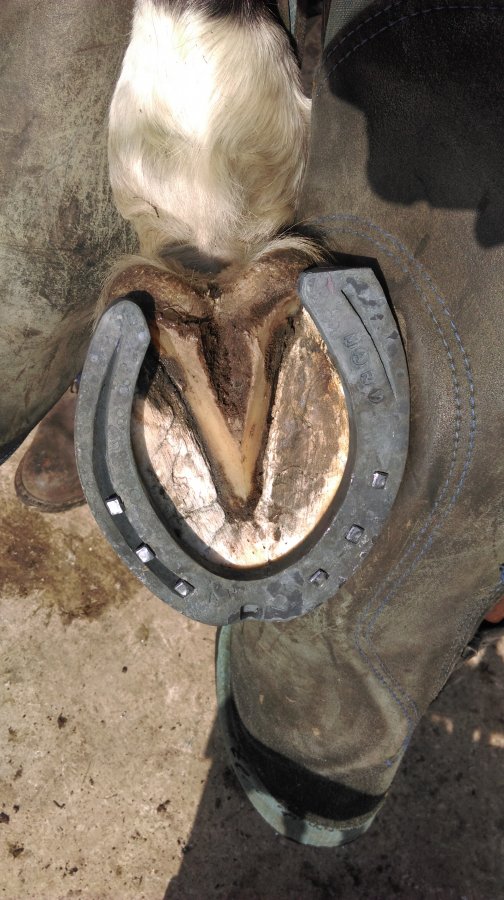

    The medial side doesn't even touch the ground. The fullered inside is to lighten the shoe as its a bulky shoe and the plain stamped lateral toe quarter is to allow the horse to slide with loaded twist. If you look at his worn shoes (which I will take photos of) the lateral toe quarter is worn away and the medial side the nail heads are like the day I put the shoe on.
  15. Offline

    Michael Allen Champion spokesman for UK toolmaker!

    Likes Received:
    147
    Trophy Points:
    43
    Have you ever considered building a wedged outside heel for this situation?
  16. Offline

    Alex Hall Active Member

    Likes Received:
    62
    Trophy Points:
    28
    You would cripple it. Forcing it onto the inside where the spavin occurs would make it lie down for a month. Negative pressures is a no no in this situation
  17. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

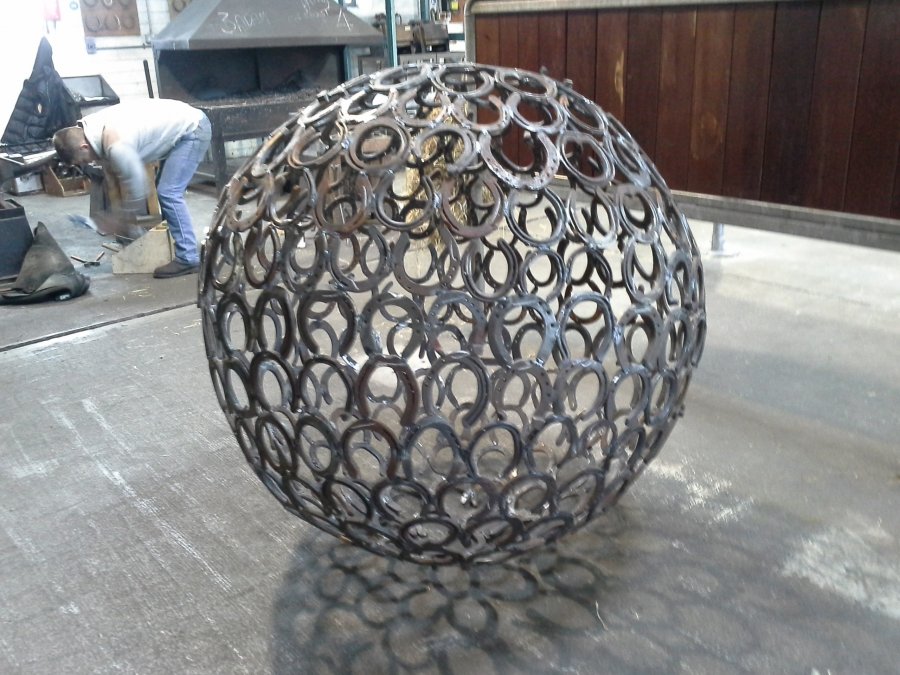

    A farrier friend of mine put this together
    there are five of my hand mades in there some were 20150528_165237.jpg
  18. Offline

    brian robertson Active Member

    Likes Received:
    132
    Trophy Points:
    43
    let me guess, is it a light fixture?
  19. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    No its going to be on the grounds of one of our top race courses
  20. Offline

    Alex Hall Active Member

    Likes Received:
    62
    Trophy Points:
    28

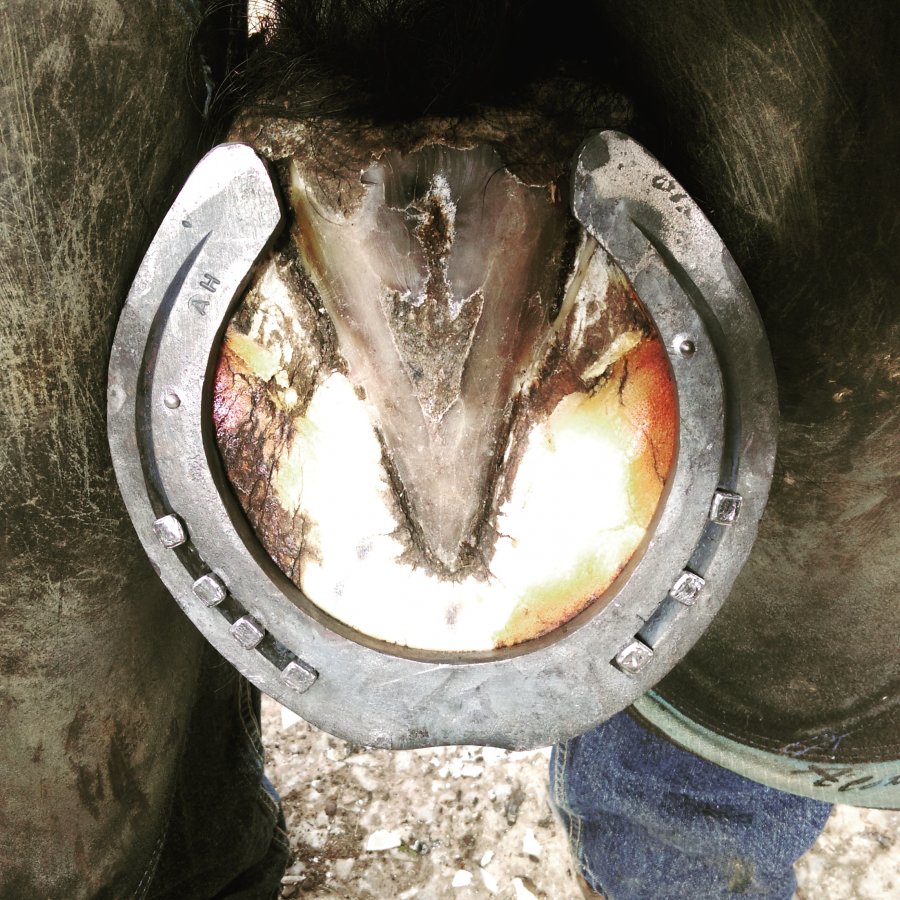

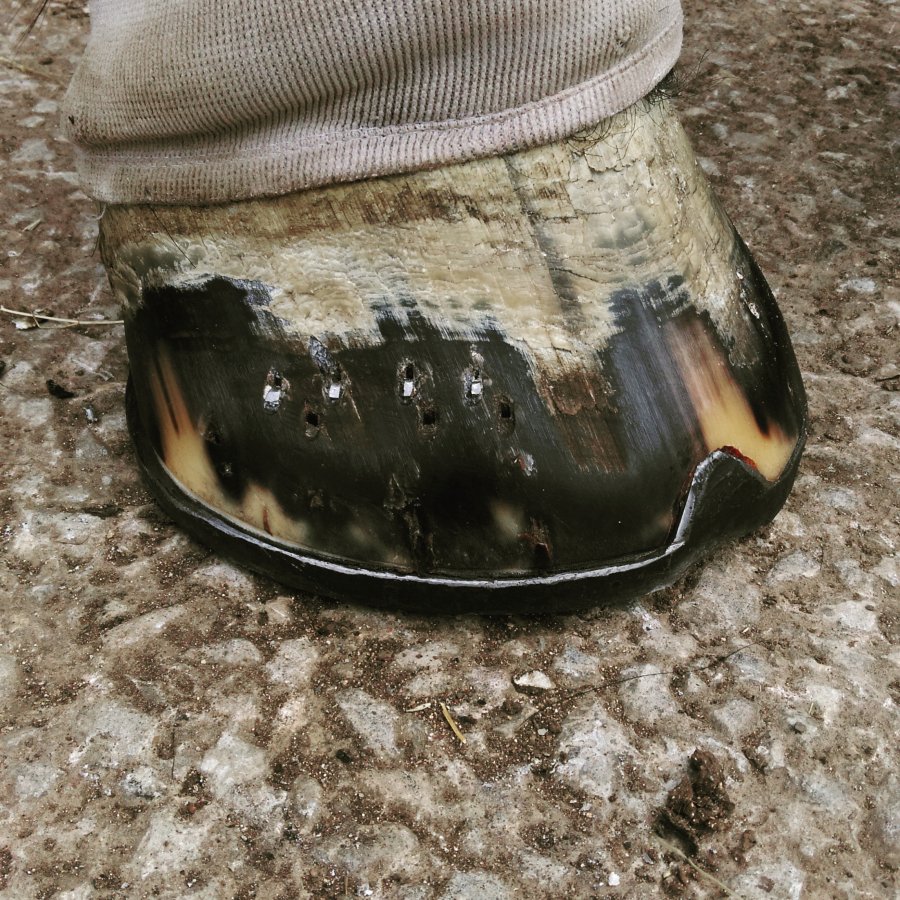

    Attached Files:
