    Gabino, I am not even close to mastering anything...but thanks for the kind words. The boss on each rein is too thin for my liking. The offset needs to be more crisp, and the neck is thin too. We had shop night at my buddy's house last night. He had a similar pair which is where I got the idea. He also has a power hammer which makes drawing the reins out a 2-3 heat process.
  2. Offline

    scruggs1 Active Member

    Likes Received:
    72
    Trophy Points:
    28

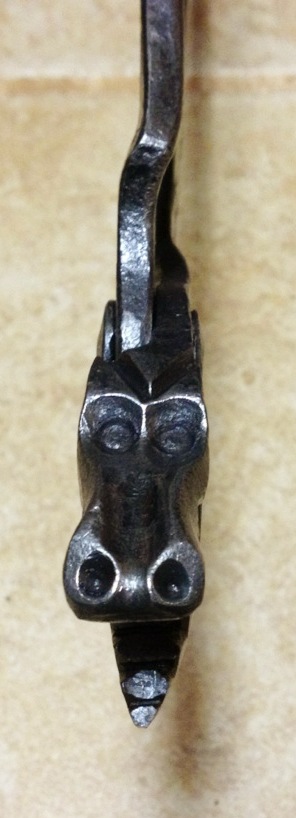

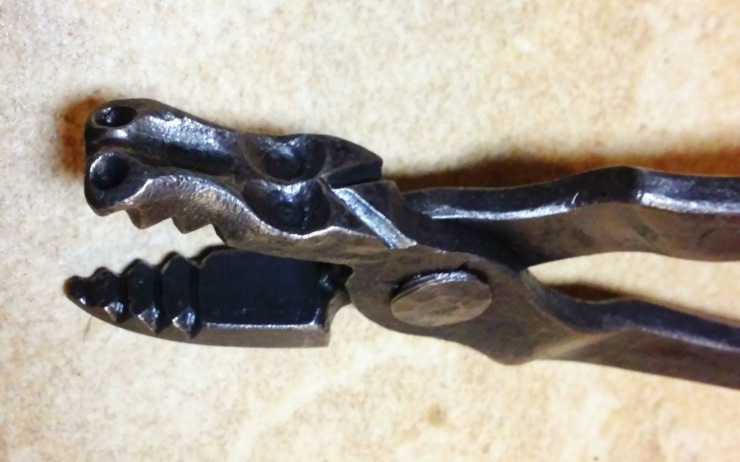

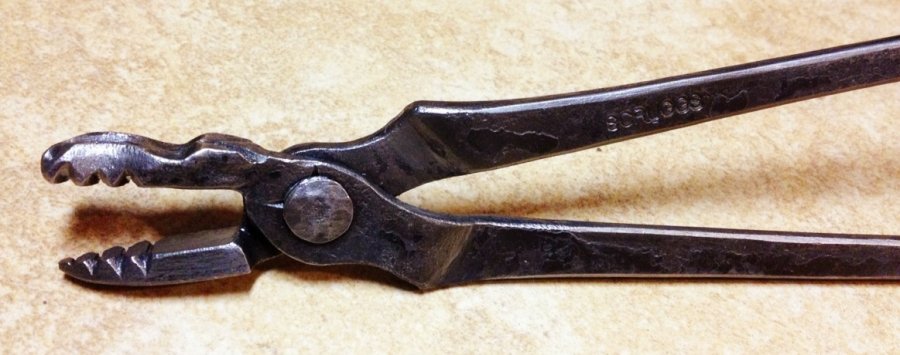

    Had another go. Decided I needed some dragon hot fit tongs. At least the bottom jaw is pointed...cows definitely don't have top teeth or pointed lower jaws. The reins are loooonnnnggg...about 2 feet. I still need to trim them up and find a ring so they will lock.


    IMG_0395.JPG IMG_0396.JPG
    • Like Like x 3
    • Winner Winner x 1
    • List
  3. Offline

    Eric Russell Active Member

    Likes Received:
    125
    Trophy Points:
    43
    Excellent work!

    I'd like to see more width behind the eyes and maybe a smaller snout. And the bottom jaw not rounded so it can sneak in and get any piece of steel.

    What's the easiest way to go about my wants? :D Bump it back into itself or use a different size stock?
  4. Offline

    scruggs1 Active Member

    Likes Received:
    72
    Trophy Points:
    28
    These were made out of two pieces of 1/2" x 1", 7 1/2 inches long. They are set for 5/16". The very first thing I did was make the section for the jaws and it wound up being about 1/2" square, 1 1/4" long. To get more width behind the eyes, that could be set down longer and bumped up to 5/8" square. Not sure about the bottom jaw. I tried it on an 0 shoe and it fit those nail holes perfectly. I'm sure I will make another pair eventually. :D
  5. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    White flag is up over in the UK !!!!!!
  6. Offline

    Eric Russell Active Member

    Likes Received:
    125
    Trophy Points:
    43
    Oh! I didn't realize you were actually using the head as the carrying tong. That's some cool stuff
  7. Offline

    Justin Decker Active Member

    Likes Received:
    103
    Trophy Points:
    43
    Computer is broke not sure how to get this to the album on my phone.

  8. Offline

    Justin Decker Active Member

    Likes Received:
    103
    Trophy Points:
    43
  9. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83

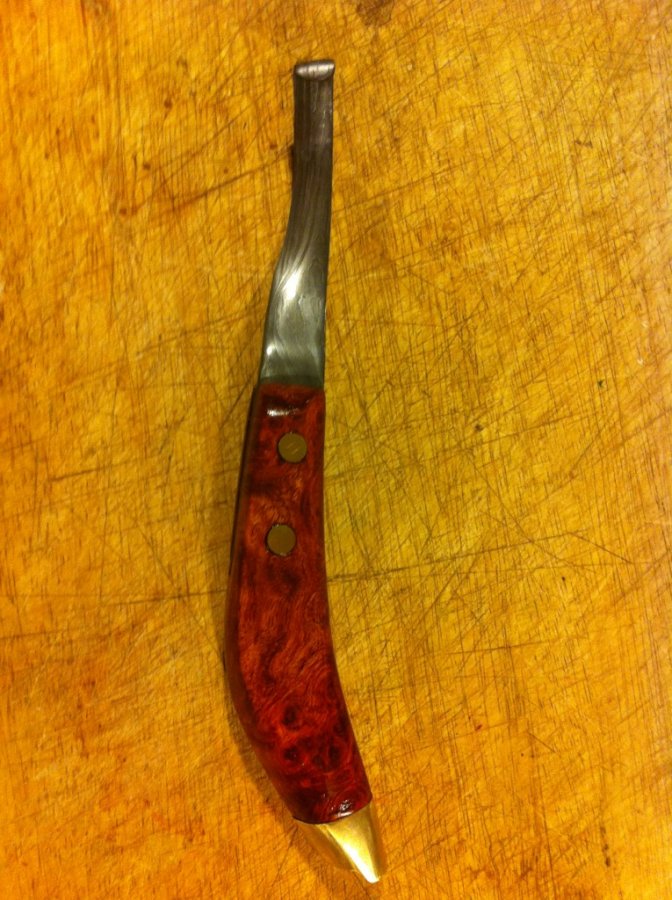

    Justin Is that Burr Elm, Cherry, or Rose Wood?
  10. Offline

    Justin Decker Active Member

    Likes Received:
    103
    Trophy Points:
    43

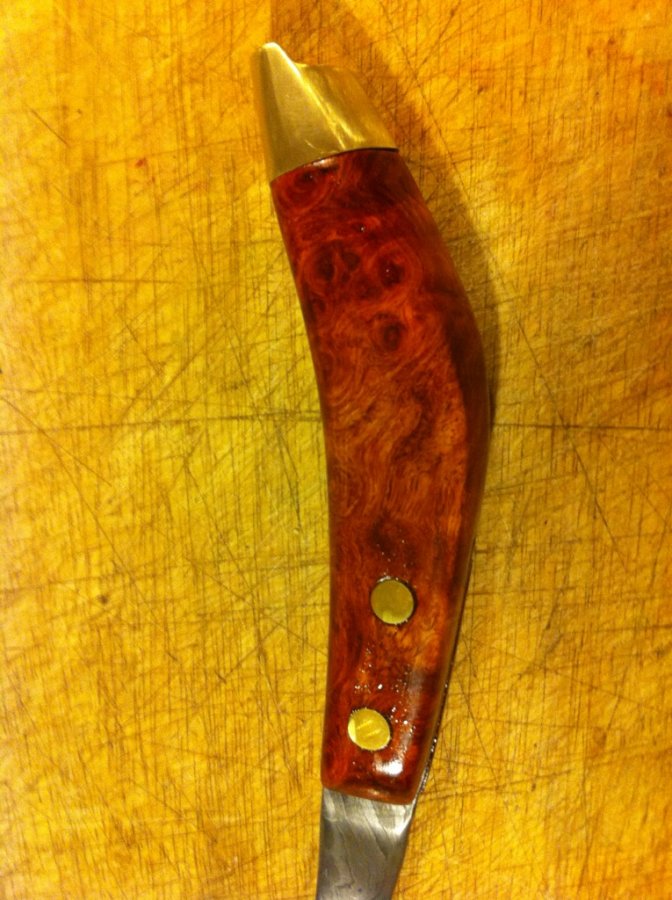

    Amboyna burl, it's expensive exotic wood :)
  11. Offline

    Rick Burten Professional farrier

    Likes Received:
    82
    Trophy Points:
    28
    Beautiful work, Justin.
  12. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    A Petrocarpus species. "Amboyna" refers specifically to the burl figured section of the tree - the "warts." The un-figured section of the tree is known as "Padauk" <<Link - a favorite of custom guitar builders.
  13. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

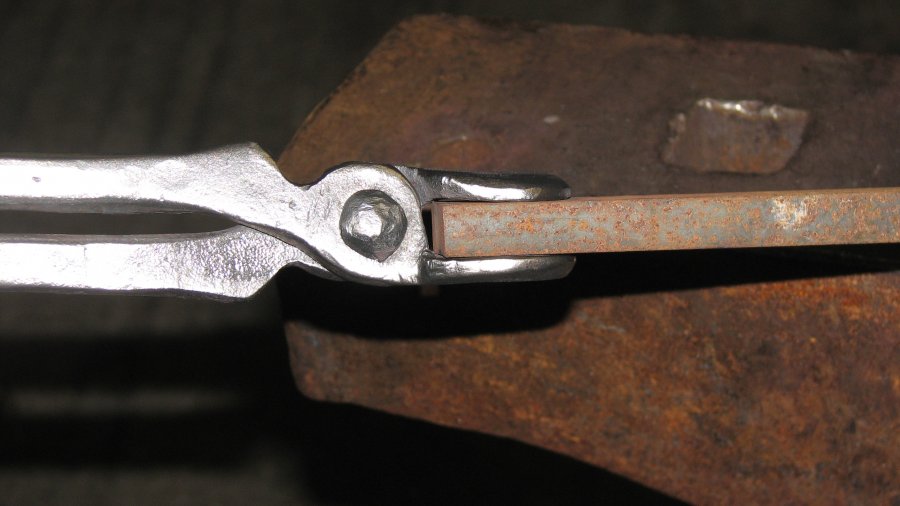

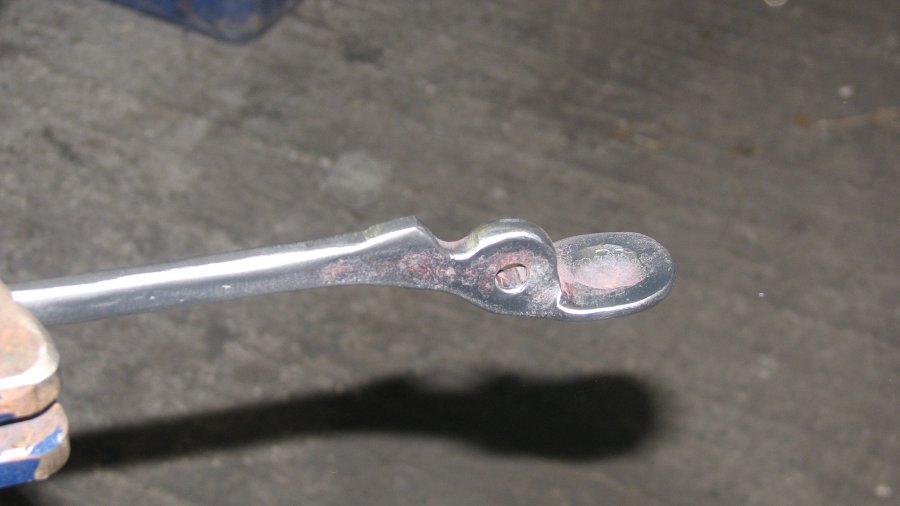

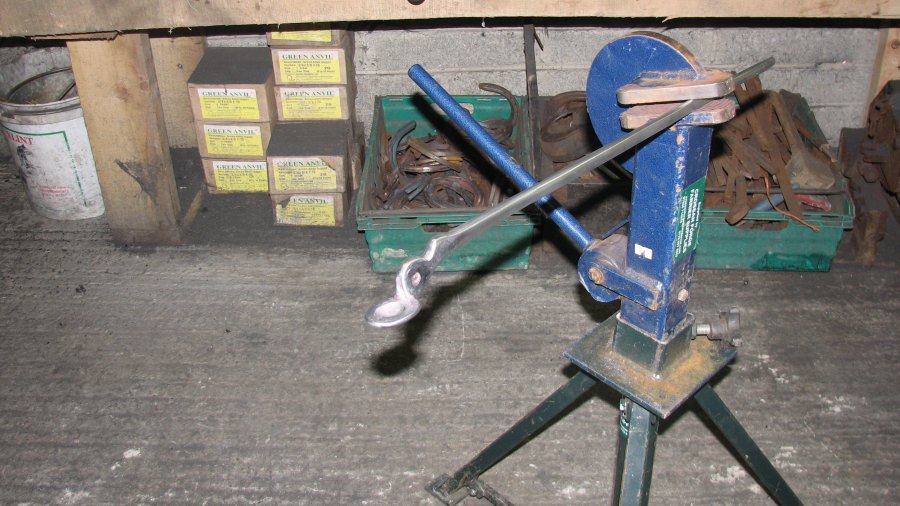

    A pair of fire tongs made todayfrom 13"of 1" x 3/8
    reins were 21" to fit 1x1/2
  14. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
  15. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
  16. Offline

    gary evans old and slow

    Likes Received:
    215
    Trophy Points:
    43
  17. Offline

    Eric Russell Active Member

    Likes Received:
    125
    Trophy Points:
    43
    Nice contest this month!

    Winners

    1. John Scruggs
    2. Justin Decker
    3. Rick Shephard
  18. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Thanks Eric. The right result.
  19. Offline

    ray steele Administrator

    Likes Received:
    160
    Trophy Points:
    63
    Thanks Eric,

    David Feb. is here, next contest?

    Ray
  20. Offline

    david a hall Moderator

    Likes Received:
    265
    Trophy Points:
    83
    Maybe something in aluminium as it seams quite popular at the min. but open to suggestions.
