WHAT NAIL SELECTION DO YOU CARRY

Discussion in 'General Discussions' started by smitty88, Apr 7, 2012.

  1. Offline

    Travis Morgan Copenhagen. You can see it in my smile!

    Likes Received:
    14
    Trophy Points:
    18
    I've got a 50 foot rope and a fast pony!
  2. Offline

    Tom Bloomer Well-Known Member

    Likes Received:
    223
    Trophy Points:
    63
    If you catch her she might have her way with you . . . :cool:
  3. Offline

    dana fenn It's complicated . . . .

    Likes Received:
    19
    Trophy Points:
    18
    I've got a $20 bill to bet on Kim **cheeky grin** Oh, sorry, travis . . . . lol!
  4. Offline

    Travis Morgan Copenhagen. You can see it in my smile!

    Likes Received:
    14
    Trophy Points:
    18

    Well, if she must, she must!
  5. Offline

    Western Hill Forge Active Member

    Likes Received:
    125
    Trophy Points:
    43

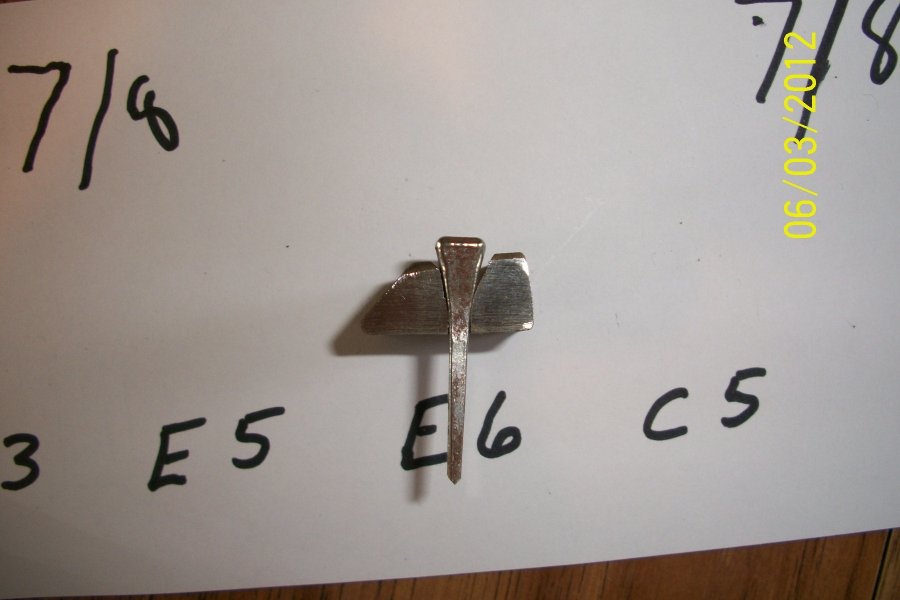

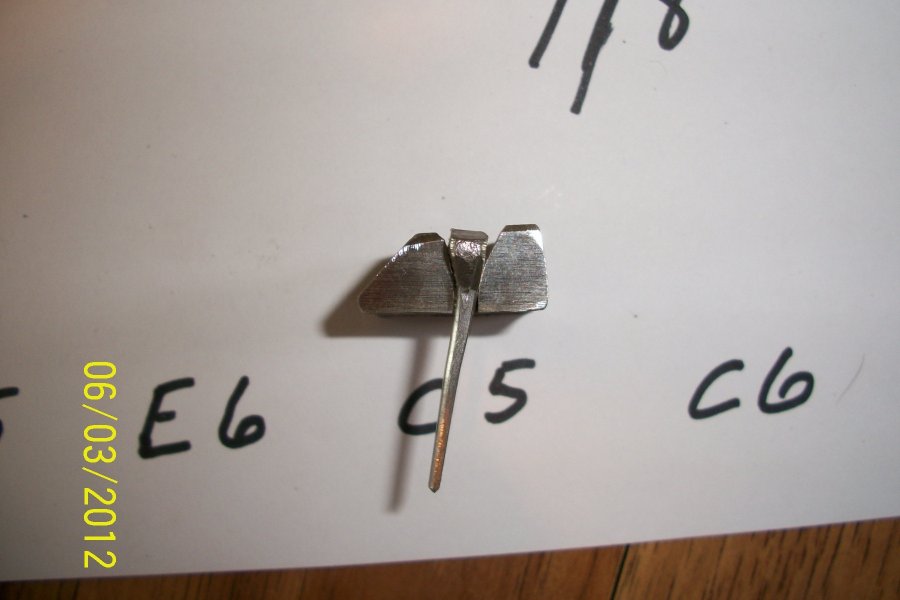

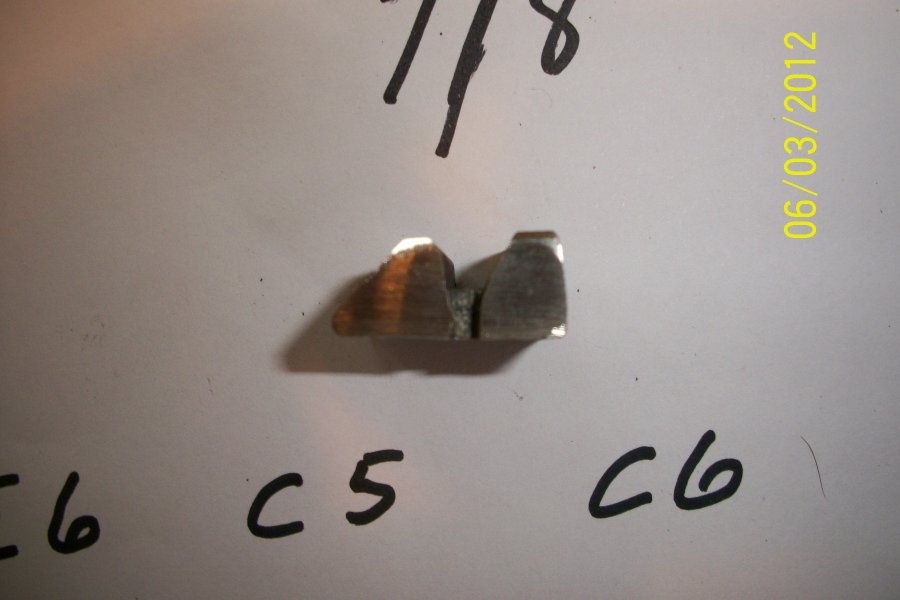

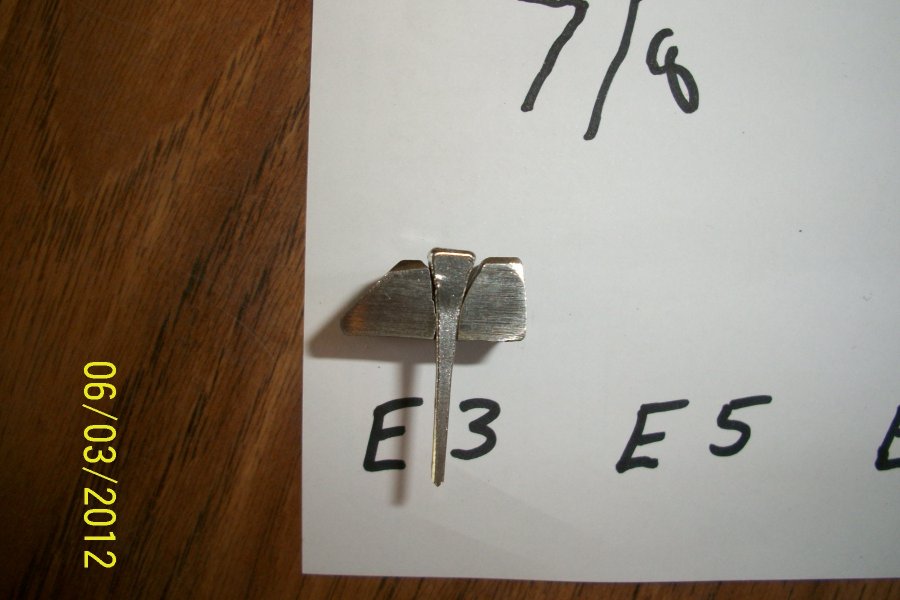

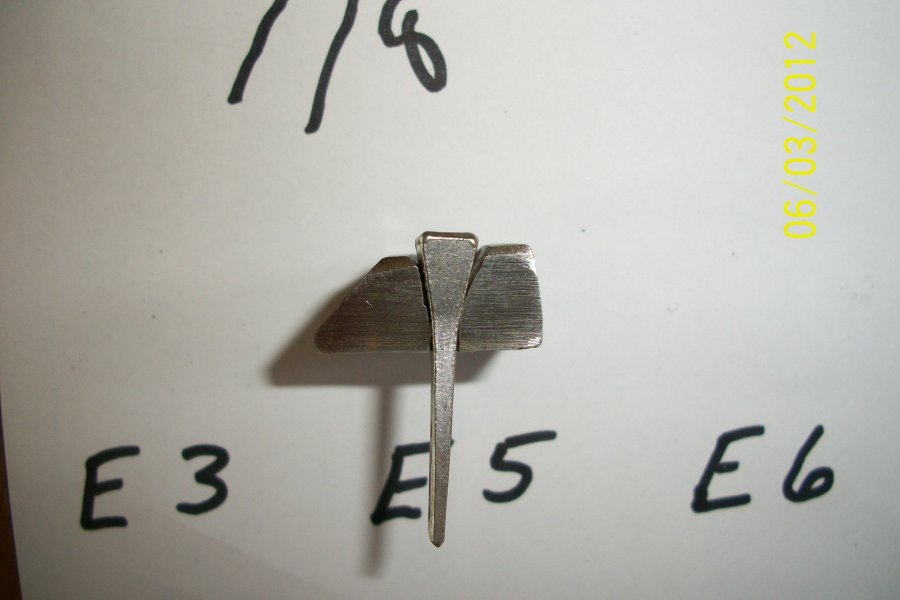

    A little project I thought of when this topic first came up. Nail fit. Here are some pictures of punched nail hole cross-sections in 3/8 X 7/8 concave. I've been struggling with nail fit in my concave. The pictures are labelled. I originally took pics of 3 at a time, but the angle threw the pictures off, so I took each picture straight on. I threw in the city head nail pics for comparison only. Wish I had Smitty's gift with the camera, but here they are.

    I'm not thrilled with any of the fits, but I'm thinking the E5 fit the best. The pics are all using the same piece of stock. Can you all make some observations on the nail size/fit/punching, etc. Thanks in advance.

    Regards 000_0030.jpg 000_0031.jpg 000_0032.jpg 000_0033.jpg 000_0034.jpg

    Attached Files:

  6. Offline

    jack mac Guest

    Likes Received:
    0
    Trophy Points:
    0
    Try a BH 5 - 6 or combo CH 5-6 if your not going to proud stamp & the smaller diameter shoe made close the fuller in more .
  7. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    Can we have a look at your stamp and pritchel?

    In 7/8x3/8 i would use a 5 or a 6 depending on the size and quality of the foot
  8. Offline

    jack mac Guest

    Likes Received:
    0
    Trophy Points:
    0
    Are you referring to me or Weston ?
  9. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
  10. Offline

    Western Hill Forge Active Member

    Likes Received:
    125
    Trophy Points:
    43

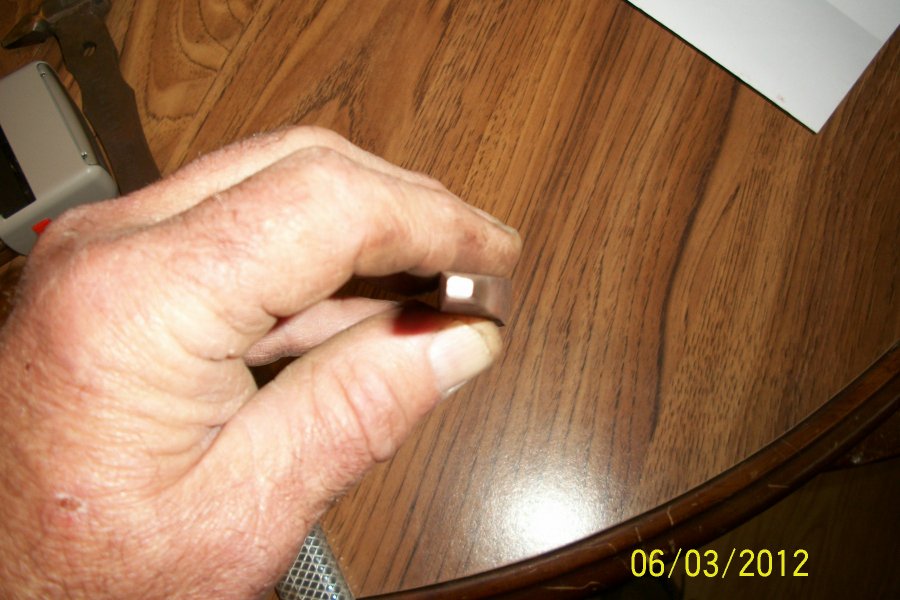

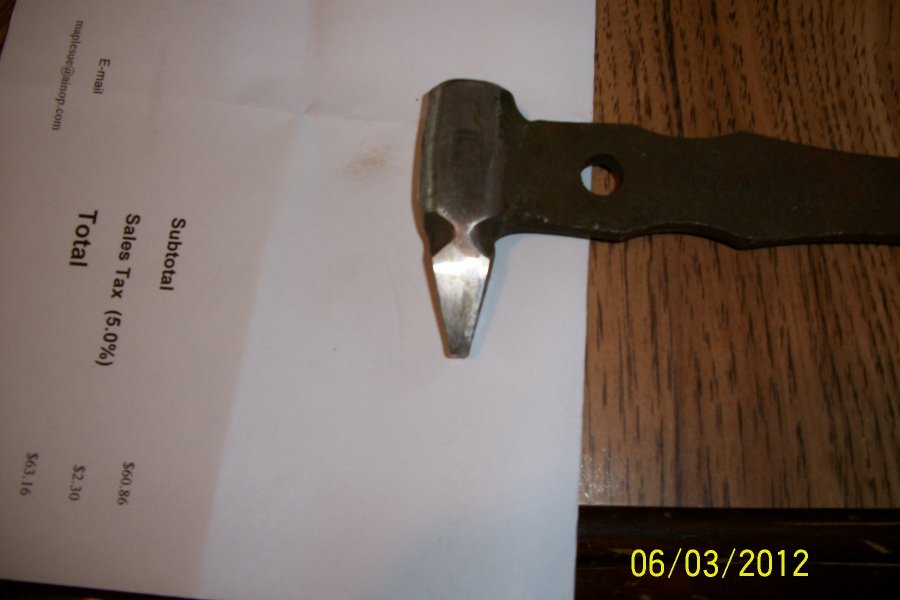

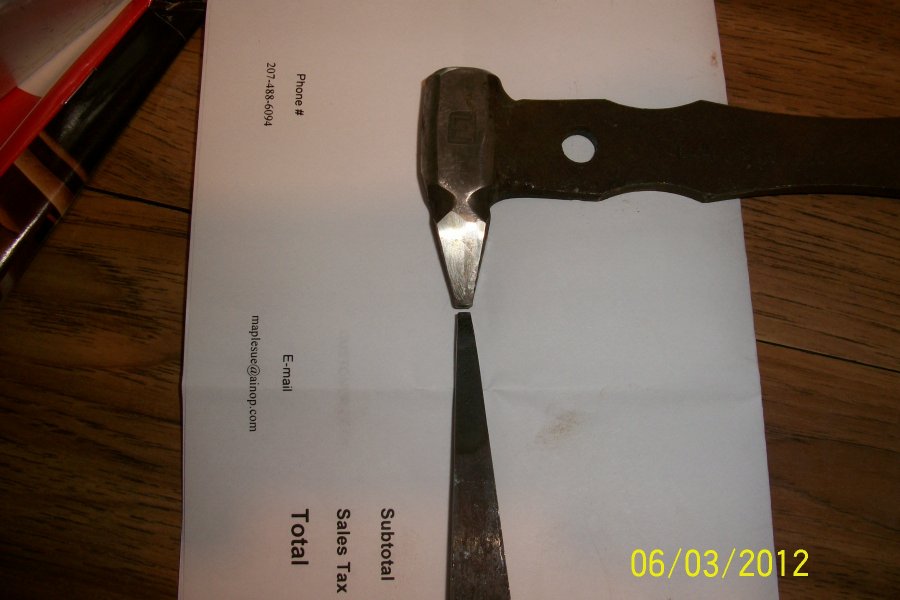

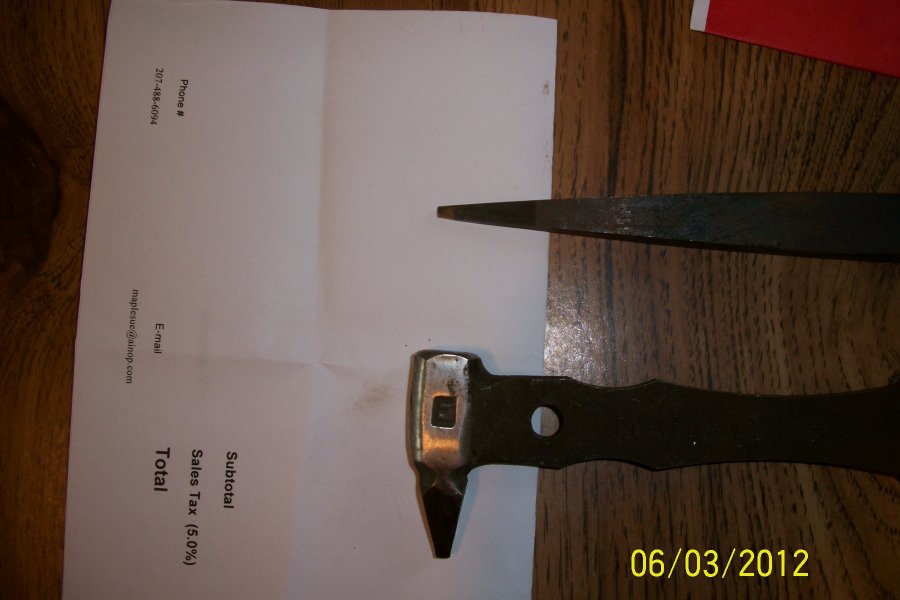

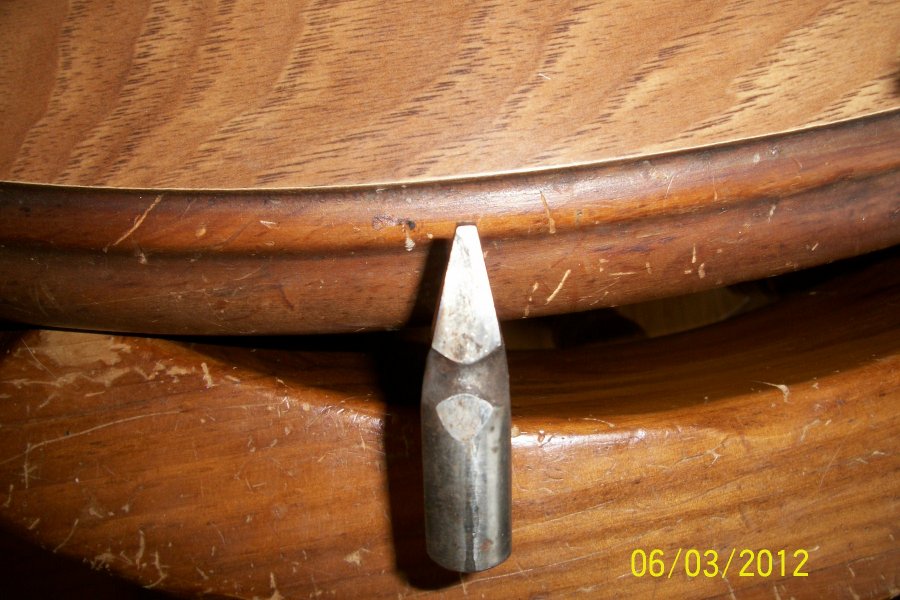

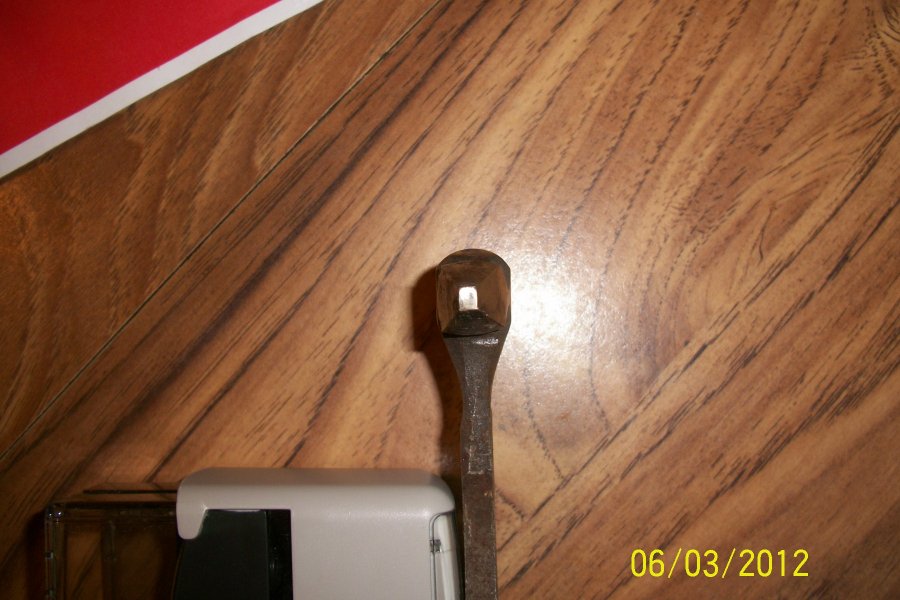

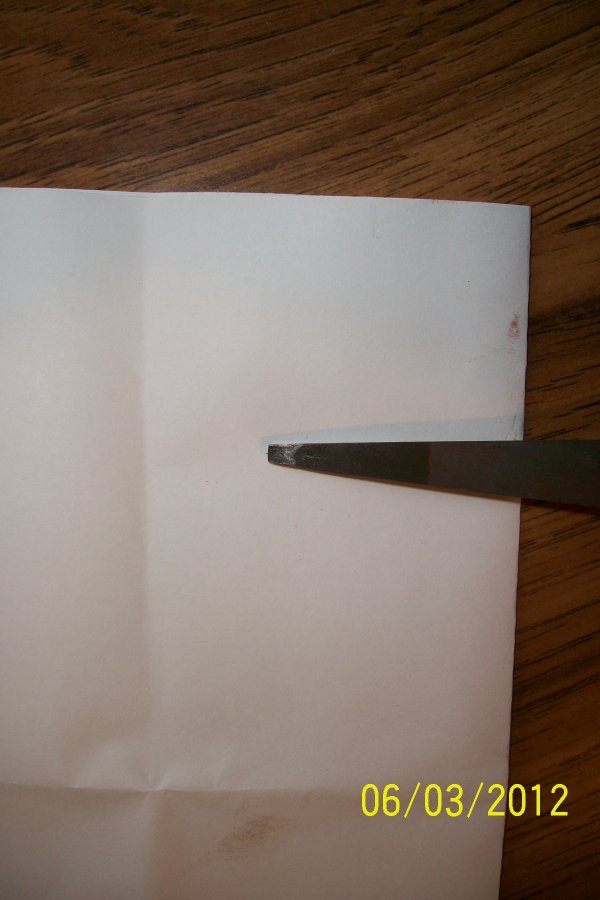

    I took a lot of pics trying to get some useful ones. Don't know if these are adequate for you to suggest anything, but I appreciate your response. I'm seeing that the end of the forepunch is bigger then the end of the pritchel. I don't know if you can see that in the pics.

    I guess I should also add that I've used them some since doing the cross sections, and tuned up the pritchel at least once.

    Attached Files:

  11. Offline

    jack mac Guest

    Likes Received:
    0
    Trophy Points:
    0
    Western Do you have any BH 5 or 6 ? to try in that rolled cress. Or aren't those fruit allowed in the bowl for comparing?
  12. Offline

    jack mac Guest

    Likes Received:
    0
    Trophy Points:
    0
  13. Offline

    Western Hill Forge Active Member

    Likes Received:
    125
    Trophy Points:
    43
    To be honest Jack, this is the first I've heard of a BH nail. Maybe they're called something different over here? I just googled it and read that it is the most used in the Australian market. Sounds like it is similar to our CH slim.

    Regards
  14. Offline

    Western Hill Forge Active Member

    Likes Received:
    125
    Trophy Points:
    43
  15. Offline

    ray steele Administrator

    Likes Received:
    160
    Trophy Points:
    63
    Rick,

    you might want to look at the Capewell countersink nails

    Regards

    Ray Steele
  16. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

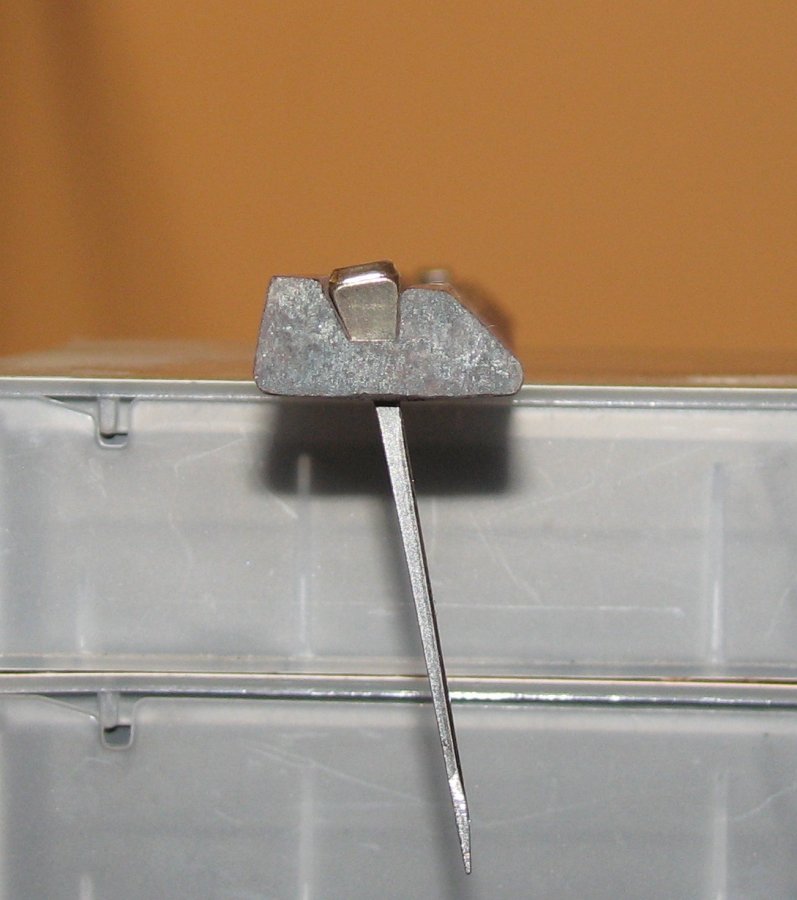

    Rick here is a bit of 7/8x 3/8 and a madox 6 fit
    got the same fit with a madox 5 with the same stamp and pritchel
    just dident come down as heavy
  17. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83

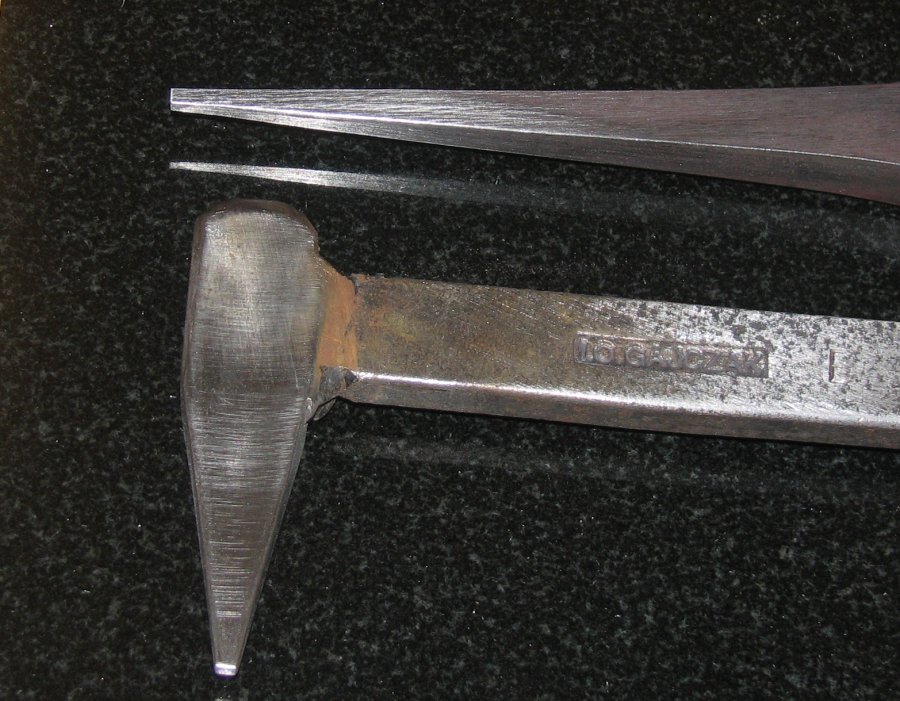

    This is the stamp and pritchel made 3 set also after doing the nail fit thing
    just give it 2/3 wipes of the sand block to keep them clean

    hope this helps some
  18. Offline

    Eric Russell Active Member

    Likes Received:
    125
    Trophy Points:
    43
    Rock, do you have the equine or english concave?
  19. Offline

    smitty88 Well-Known Member

    Likes Received:
    391
    Trophy Points:
    83
    First Weston now Rock:confused:
  20. Offline

    Western Hill Forge Active Member

    Likes Received:
    125
    Trophy Points:
    43
    Smitty, Thanks, that's the fit I was looking for. I'll tune up my tools tonight. I checked the ends against a guage I have, and against a new Flatland pritchel and forepunch and I can see that I need some adjustment. Amazing that you could tell that from the crappy pictures I posted. I'l post some more pics when I get done - tools and nail holes. Might be later in the week, I've got a couple of long days coming up.

    Thanks Ray, I'll check them out.

    Elrick, ( :p ) I just called the supplier and the concave is from Billy Cruthers.

    Thanks all for the help and suggestions. Keep 'em coming.

    Regards
